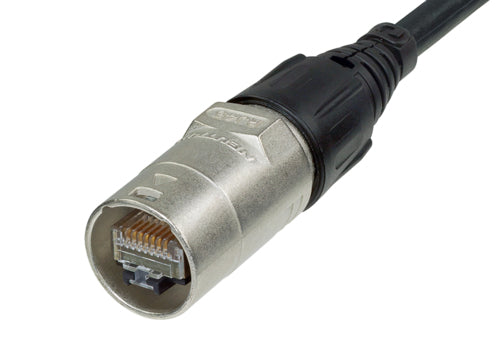

Neutrik Ethercon Cable Connector Housing-Nickel
NE8MC-1
$2.92

The RJ45 system for harsh and demanding environment. Cable connector carrier accepts the most common RJ45 plugs (see list at downloads.) Rugged diecast shell and unique chuck type strain relief. Protects Ethernet connections in a variety of commercial type applications and is designed to prevent breakage of the fragile components of standard RJ 45 connectors. O-ring gasket to achieve IP54 water protection in combination with SE8FD sealing kit. Accessories include color coded boots in 9 standard colors.

RJ45 cable connector carrier for pre-assembled RJ45 plugs consists of shell, fixing disk, chuck, bushing and boot. Packed with two cable protection elements for cable diameter either up to 5 mm or 8 mm. Cable connector carrier does not include a RJ45 plug.

The etherCON cable connector carrier upgrades a conventional RJ45 connector to an extremely robust lockable solution.

Attention! Does not intermate with the CAT6 chassis connectors NE8FDY-C6 and NE8FDY-C6-B.

Mechanical: Cable O.D.max. 8 mm 0.315' Insertion force≤ 20 N: Withdrawal force≤20N: Lifetime> 1000 mating cycle: Material Boot-Polyamide (PA 6) :Shell Zinc diecast (ZnAl4Cu1) :Shell plating Black chromium: Strain relief Polyacetal (POM): Environmental: Temperature range-30 °C to +80 °C :I

IMPORTANT: Product specific cable connectors do not include RJ 45 plug. RJ 45 cable assembly must be provided by end-user. New version also available NE8MX-1
