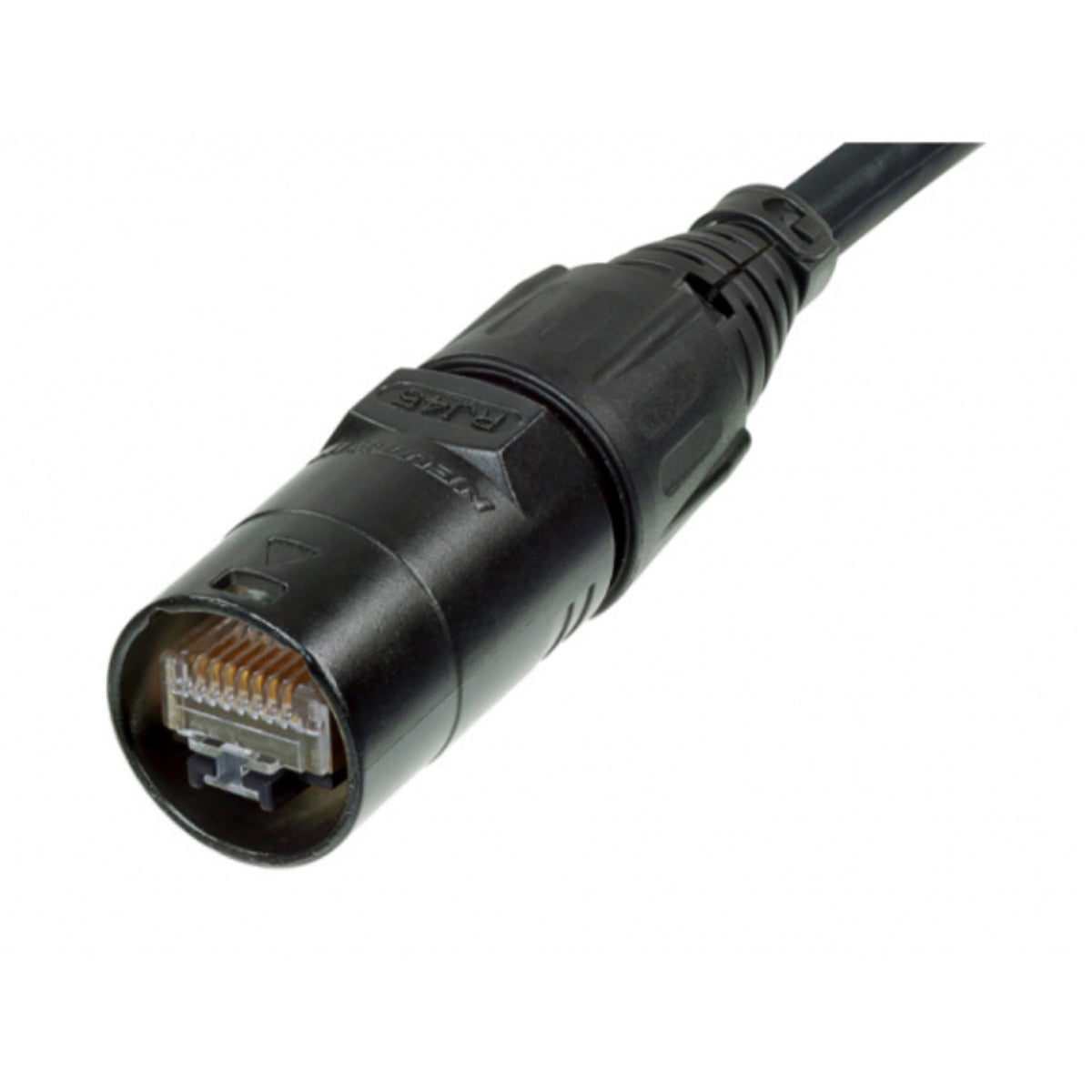

Neutrik Ethercon Cable Connector Housing-BlackNemal Electronics
The RJ45 system for harsh and demanding environment. Cable connector carrier accepts the most common RJ45 plugs (see list at downloads.) Rugged diecast shell and unique chuck type strain relief. Protects Ethernet connections in a variety of commercial type applications and is designed to prevent breakage of the fragile components of standard RJ 45 connectors. O-ring gasket to achieve IP54 water protection in combination with SE8FD sealing kit. Accessories include color coded boots in 9 standard colors.
Mechanical: Cable O.D.max. 8 mm 0.315' Insertion force≤ 20 N: Withdrawal force≤20N: Lifetime> 1000 mating cycle: Material Boot-Polyamide (PA 6) :Shell Zinc diecast (ZnAl4Cu1) :Shell plating Black chromium: Strain relief Polyacetal (POM): Environmental: Temperature range-30 °C to +80 °C :I
IMPORTANT: Product specific cable connectors do not include RJ 45 plug. RJ 45 cable assembly must be provided by end-user.
