XLR Cable Assemblies with 3, 4 or 5 pins
- Available in any length in a wide range of colors and color coded bushings
- 3-Pin Microphone Assemblies MC424P (2 pair star quad) braided shield microphone cable
- 4-Pin Assemblies for camera power use Nemal 16awg or 18awg multi-conductor cables
- 5-pin Assemblies for DMX applications (Nemal 2402D Cable)
- Neutrik “XX” Series Nickel Plated Connectors
| FOOTAGE | 3-Pin Male to Female | 3-Pin Male to Male | 3-Pin Female to Female | 4-Pin Male to Female | DMX 5-Pin Male To Female |
| Cable | MC424P | MC424P | MC424P | 18awg-4C18 | 2402D |
| 3 | JX424P-3FT | JXMM424P-3FT | JXFF424P-3FT | JX4MF-3FT | JX5DMF-3FT |
| 5 | JX424P-5FT | JXMM424P-5FT | JXFF424P-5FT | JX4MF-5FT | JX5DMF-5FT |
| 10 | JX424P-10FT | JXMM424P-10FT | JXFF424P-10FT | JX4MF-10FT | JX5DMF-10FT |
| 15 | JX424P-15FT | JXMM424P-15FT | JXFF424P-15FT | JX4MF-15FT | JX5DMF-15FT |
| 25 | JX424P-25FT | JXMM424P-25FT | JXFF424P-25FT | JX4MF-25FT | JX5DMF-25FT |
| 50 | JX424P-50FT | JXMM424P-50FT | JXFF424P-50FT | JX4MF-50FT | JX5DMF-50FT |
| 75 | JX424P-75FT | JXMM424P-75FT | JXFF424P-75FT | JX4MF-75FT | JX5DMF-75FT |
| 100 | JX424P-1000FT | JXMM424P-100FT | JXFF424P-100FT | JX4MF-100FT | JX4MF-100FT |
- For Black/Gold Connectors, add –“B” to part Number
- For colored cable or bushings, add –“CCOL” or “CBUS” to part number. Use standard color code
Studio Microphone Cable Assembly- Neutrik Black/Gold XLR Male-Female
Sold out

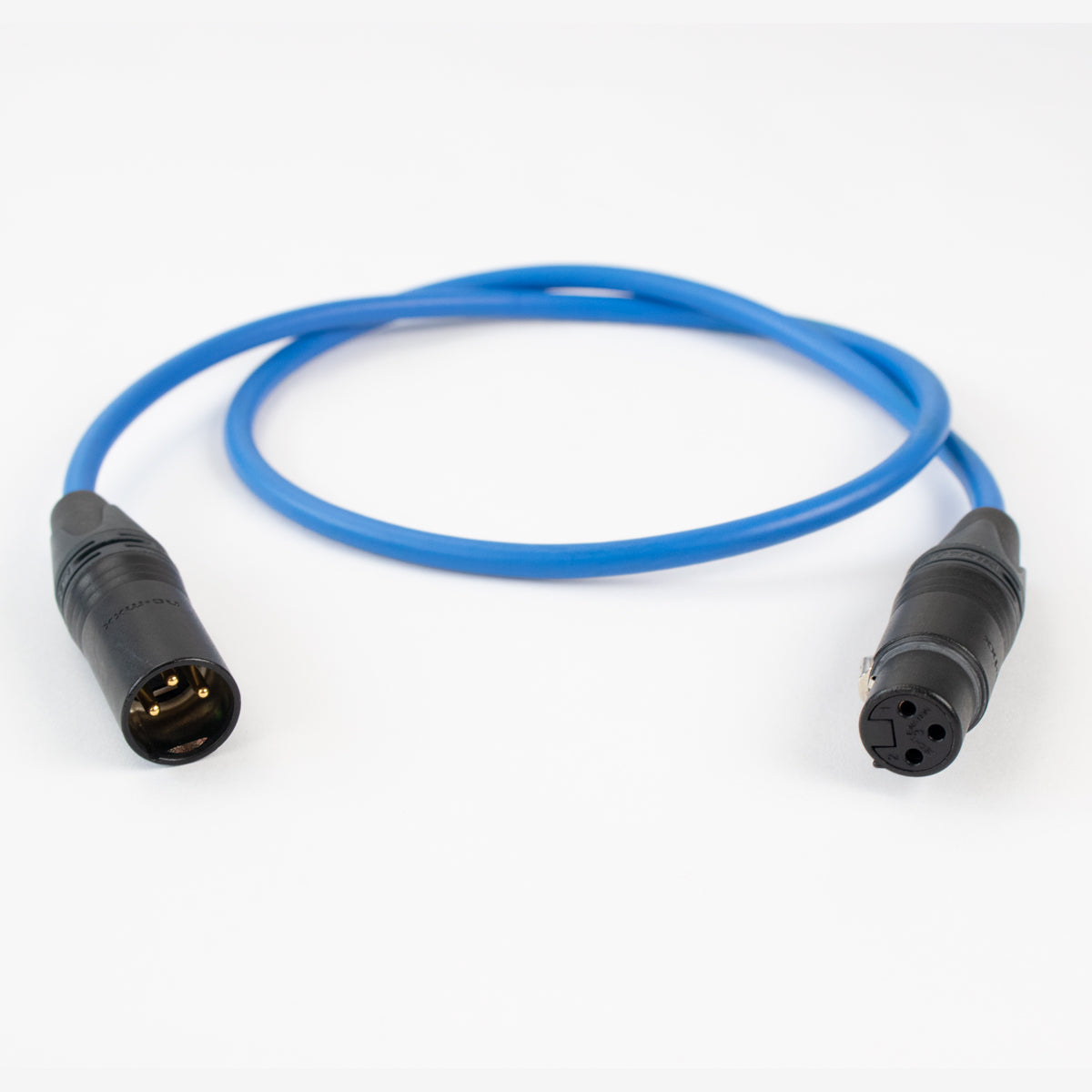

DMX Cable Assembly XLR 3-Pin Plug to Jack
Sold out
DMX Cable Assembly XLR 5-Pin Plug to Jack
Sold out
CAN'T FIND THE XLR CABLE ASSEMBLIES YOU NEED? SEND US A NOTE
Our online product selection is only a fraction of what we offer. Most of our solutions are custom made and delivered to your specifications. Let us know what you're looking for and we'll work with you in making it happen.
Prefer to reach someone right now? Chat with one of our reps or call us at (800) 522-2253, Monday to Friday, from 8am to 6pm EST. Call (305) 899-0900 if you're in the United States.
