DT-12 CONNECTORS
Features
- • Optional Steel insert (male) for superior crush resistance
- • Extremely rugged machined body
- • Low Profile, reduced weight version
- • Weatherproof insert
- • Patented Set Screw design prevents insert rotation
- • Wire retention on dust caps
- • Ease of Termination
- • Wide variety of Strain Relief options
- • Completely compatible with existing designs
- • For use with Nemal 12PR22FC, Belden 9768,
and other comparable cables
Part Number Description
- • NE3700M* Male 37 pin connector
- • NE3710F Female 37 pin connector
- • NE3720MP Male chassis receptacle
- • NE3730FP Female chassis receptacle
- • NE3740MC Male cap
- • NE3750FC Female cap *ADD “S” for steel insert
DT-12 CABLE

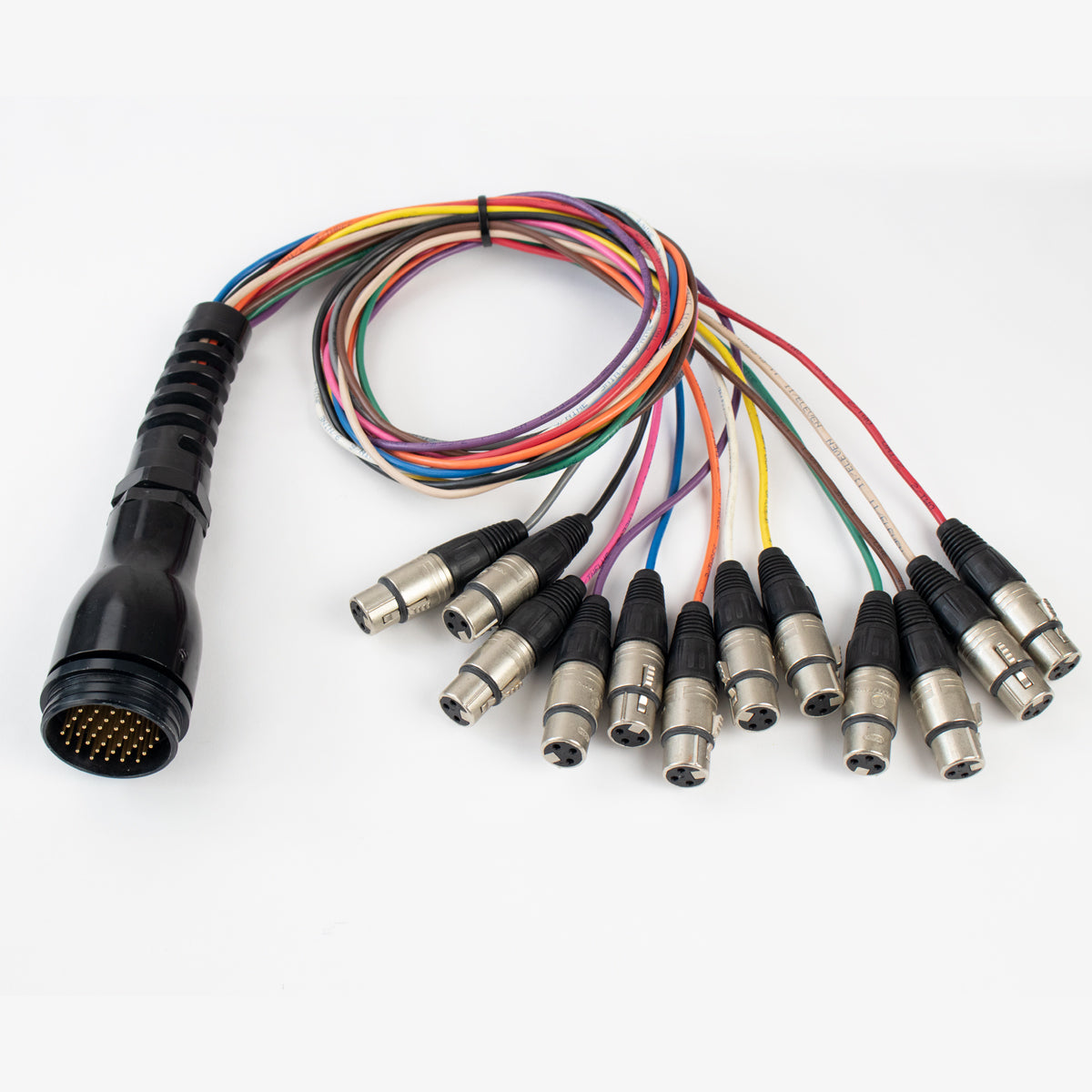

FO37M is a DT-12 fanout from a NE3700M Male 37-Pin connector to 12-female XLR connectors, 2 ft in length. It is ideal for use with the Nemal BB37 Series of DT-12 breakout boxes. Each pair is color coded for easy identification, and the DT-12 connector features a rugged strain relief at the breakout point.Nemal’s 12-pair, red+black 22awg TC, each pair with foil shield and 22awg TC drain wire.
PE Insulation DCR: 15 ohms/M
| Nemal P/N | Description | Belden Reference | Overall Shielding | Jacket Type | Jacket Diameter (in/mm) | Weight lb/1000ft (kg/km) | Capacitance bet cond (pf/ft pf/m) |
| 12PR22FC | Outdoor all-weather | – | Core wrap | Flex TPR 105C | 0.515/14.6 | 155/231 | 30/98 |
| 12PR22IS | Standard UL | 9768 | Aluminium/mylar and drain wire | PVC 60C UL CM | 0.47/11.9 | 143/65 | 30/98 |
Male to Female Assembly Part Number JFK37-XXX (length)-XX (ft or mts).
DT12 Cable Assembly 12PR22FC Male to Female with Caps
Sold out
DT12 Audio Cable for Rugged Field Use-12 Pair 22 Awg Individually Shielded
Sold out

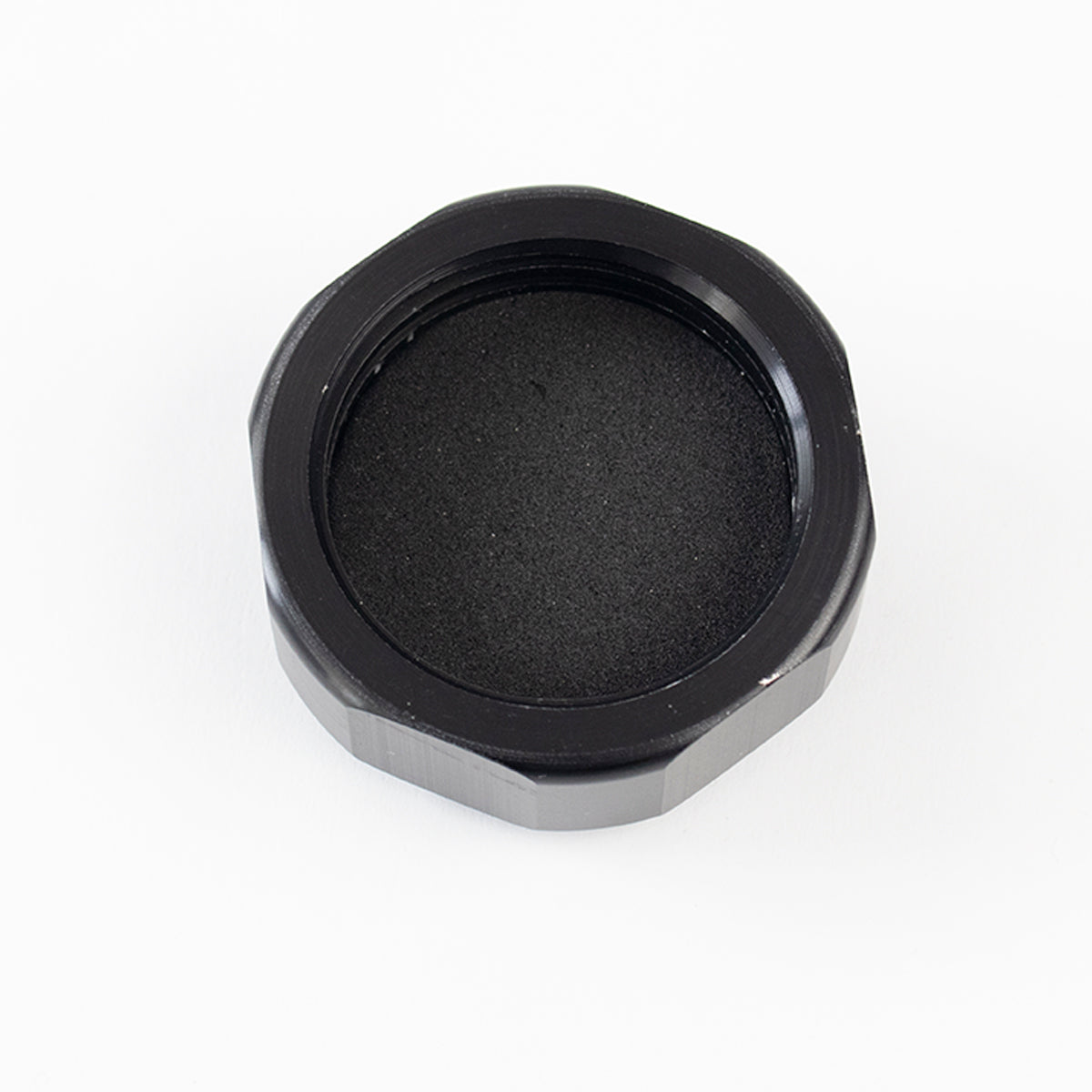

Nemal DT12 Female Cap with Lanyard (Fits Male Connectors)
Sold out
DT12 Fanout Male To 12-Female XLR 3-Pin Plugs
Sold out

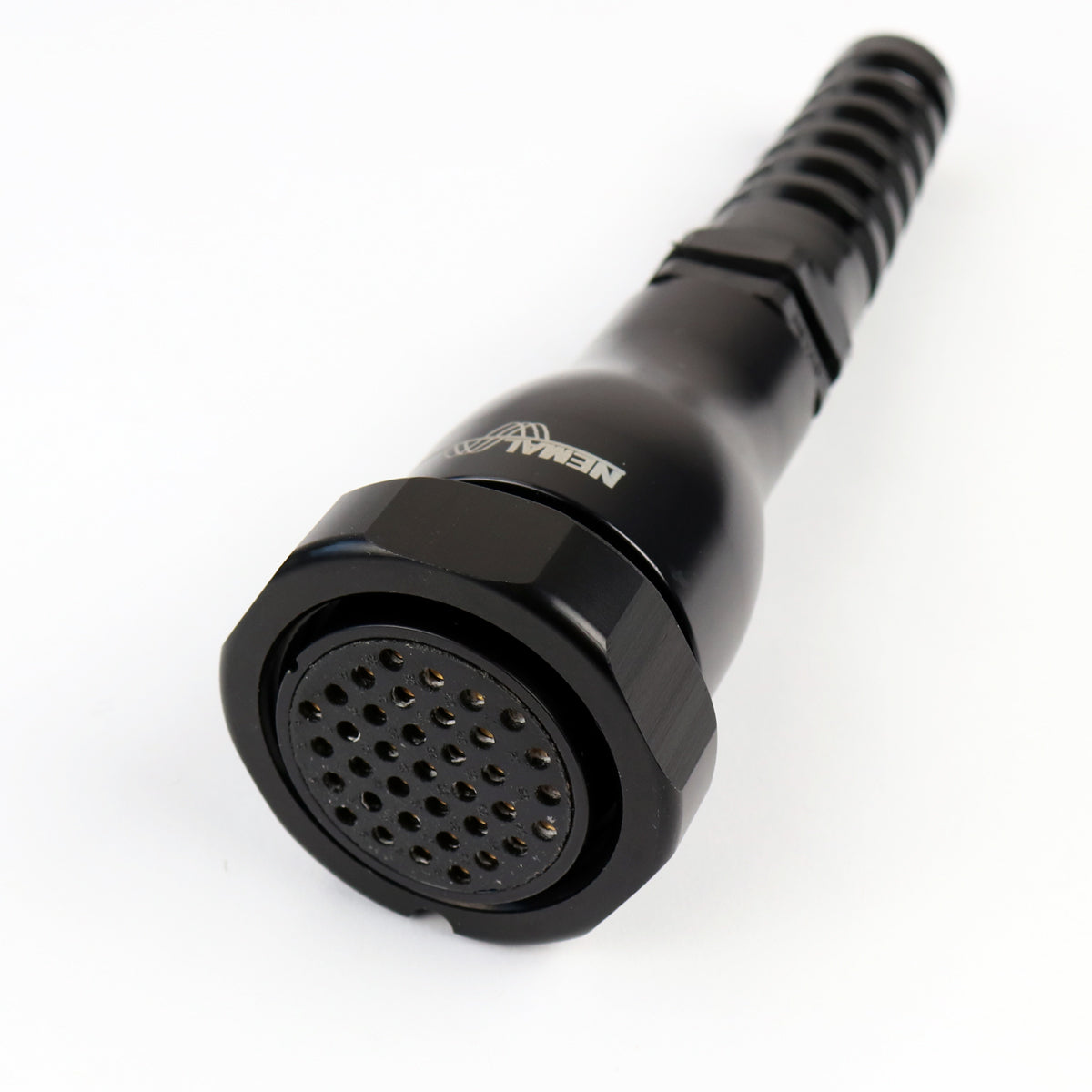

Nemal 37-Pin DT12 Female Cable Mount Connector
Sold out

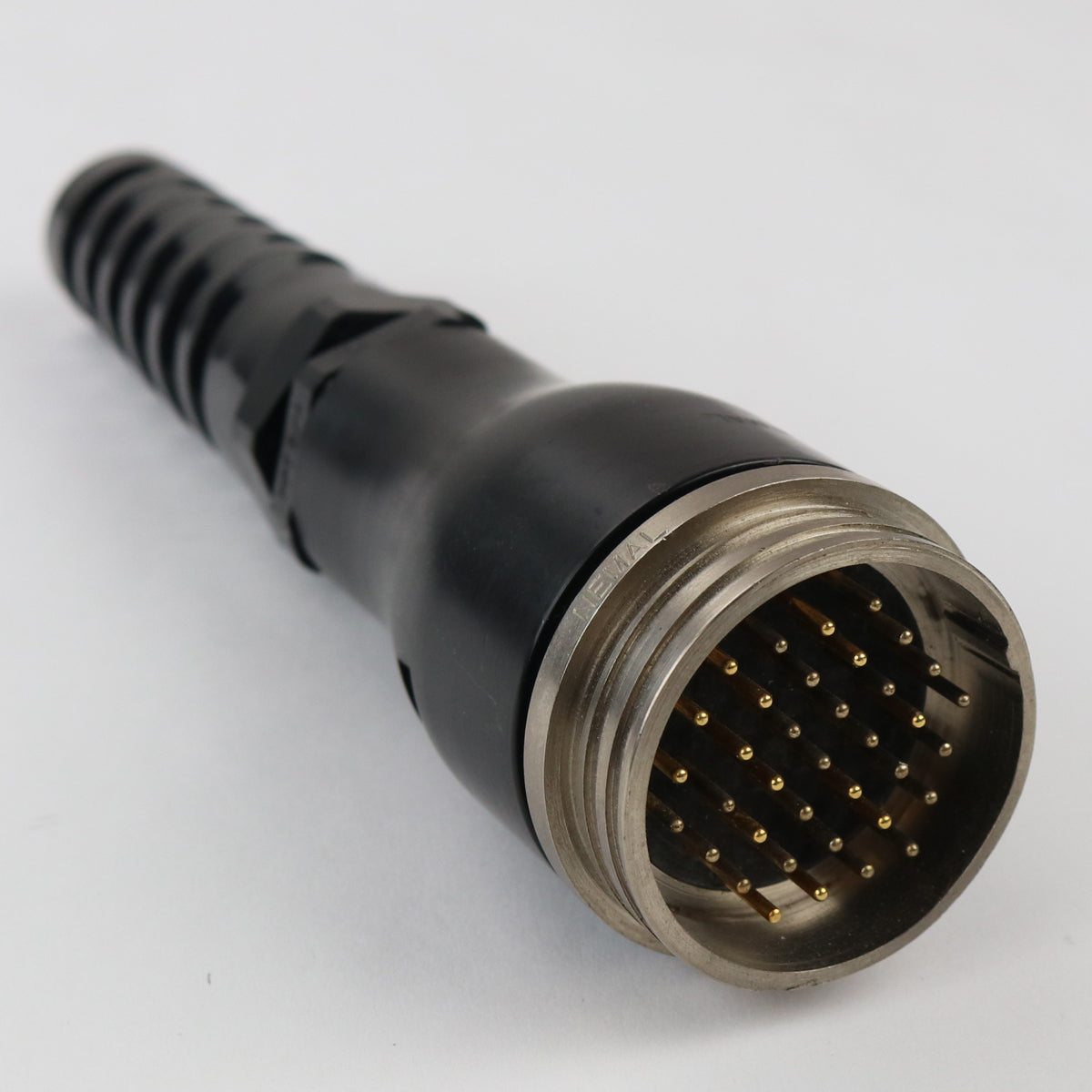

Nemal 37-Pin DT12 Male Cable Mount Connector-Steel
Sold out
Boot-NE3700 Series (Fits DT12 Connectors)
Sold out

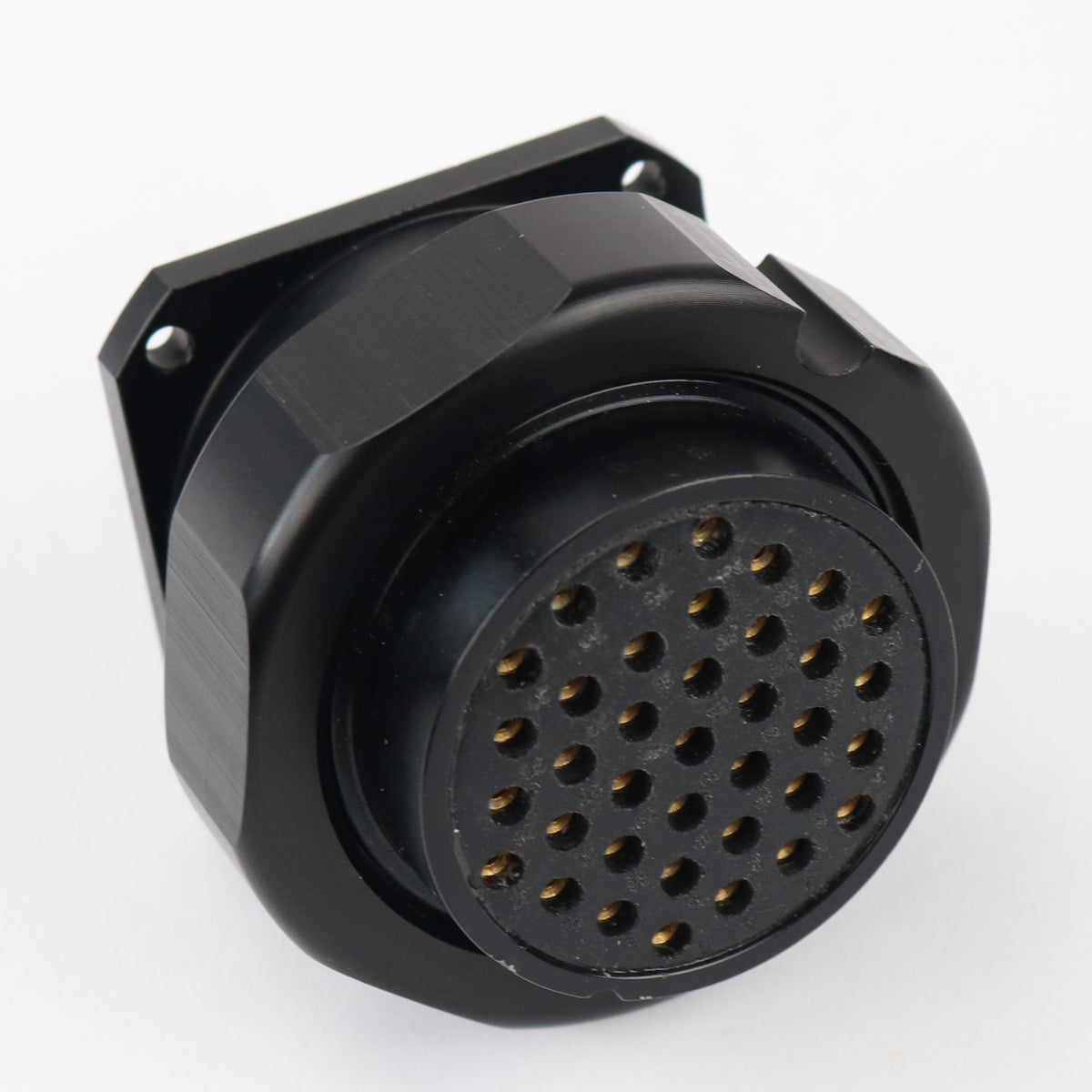

Nemal 37-Pin DT12 Female Panel Mount Connector
Sold out
