Precision crimping, stripping, insertion, and coring tools engineered for broadcast connectivity.
Where Technology Meets Experience
The NuGEN V2 SMPTE Cable Test Set is your all-in-one, field-ready solution for verifying hybrid fiber/copper SMPTE camera cables — with intuitive touchscreen controls, rugged housing, and rapid diagnostics.

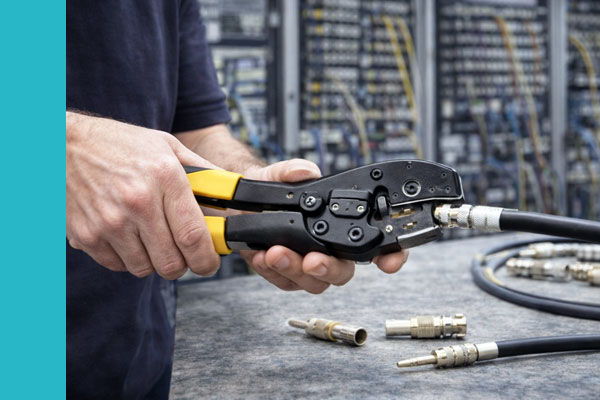

Termination Quality Matters
Poor cable termination can lead to:
- Signal degradation caused by improper connector compression or pin alignment
- Increased return loss affecting RF performance and system stability
- Intermittent connectivity from inconsistent termination quality
- Mechanical failure due to improper cable preparation or connector seating
- Costly rework during system installation or commissioning
- Broadcast cable systems depend on precise connector installation and repeatable termination methods.
Improper stripping, crimping, insertion, or cable preparation can compromise signal integrity and long-term reliability.
Professional installation tools help engineers and technicians achieve consistent, standards-compliant terminations across fiber, coaxial, and hybrid cable systems.
Tool Category
Tool Category
Terminal Crimp Tools
Reliable Connector Termination
Overview
Reliable terminations for multi-conductor assemblies.
Tool Category
Stripping Tools
Precision Cable Preparation
Overview
Precision jacket and insulation removal.
Tool Category
Insertion Tools
Controlled Contact Placement
Overview
Controlled pin and contact insertion.
Tool Category
Coring Tools
Advanced Cable Preparation
Overview
Cable preparation for advanced termination systems.
Function
Tool Category
Crimp Tools
Secure Connector Attachment
Purpose
Secure connector attachment
Benefit
Stable signal transmission
Tool Category
Stripping Tools
Controlled Insulation Removal
Purpose
Controlled insulation removal
Benefit
Prevent conductor damage
Tool Category
Insertion Tools
Pin Placement
Purpose
Pin placement
Benefit
Proper connector alignment
Tool Category
Coring Tools
Fiber And Cable Preparation
Purpose
Fiber/cable prep
Benefit
Clean termination
Tool Category
Cutting Tools
Cable Length Preparation
Purpose
Cable length prep
Benefit
Field efficiency
Crimping Tools - RF Coaxial Connectors
Tool selection chart
| Tooling Group | Die Part N (Fits CT2000R) | Tool N (Fixed Die) |
| 05 | - | CTF5/CT 6270 |
| 06 | - | CTF4/CT 6270/CT 3150 |
| 08 | - | CTF5/CT 6270/CT 3150 |
| 09 | - | CTF4/CT 6270/CT 3150 |
| 11 | - | CTF11 |
| 13 | CTD 213 | *CTF 3150/CT 6270 |
| 14 | CTD 214 | CT 6270 |
| 23 | CTD 923 | *CT 6270 |
| 26 | CTD 926 | *CT 6270/*CT 3150 |
| 28 | CTD 928 | *CT 3600/CT 6270 |
| 41 | CTD 141 | *CT 6270 |
| 42 | CTD 142 | CT 3155 |
| 56 | CTD 056 | *CT 6270 |
| 57 | CTD 057 | *CT 6270 |
| 58 | CTD 058 | CT 3500/CT 6270/CT |
| 59 | CTD 059 | CT 3500/CT 6270 |
| 61 | CTD 061 | - |
| 74 | CTD 174 | CT 6270/CT 3155 |
| 79 | CTD 179 | *CT 6270 |
| 80 | CTD 180 | CT 6270 |
| 85 | CTD 185 | - |
Crimping Tools
Type F
| Nemal Part Number | Fits Groups | Hex Sizes | Figure Number |
| CTF4 | 06, 09 | .324/.380 | 5 |
| CTF5 | 05, 08 | .260/.420 | 6 |
| CTF11 | 11 | .475/.096 | 5 |
D Subminiature
| Nemal Part Number | Fits Wire Sizes | Figure Number |
| CT1601 | 22-24 Ga. | 8 |
| CT2320* | 20-30 Ga. | 7 |
* Pin holder, locator, Full Ratchet
Stripping Tools
| Nemal Part Number | Application | Figure Number |
| CT 1205 | Rotary .100”-.300” Jacket & Dielectric | 9 |
| CT 1208 | Rotary .100”-.300” Jacket, Dielectric & Braid | 9 |
| CT 1820 | Rotary Jacket Stripper .175-1.00 | 10 |
| CT 1115 | Wire Stripper 16-30 Ga. | 12 |
| ST 1100 | RG11 - Jacket, Braid, Dielectric | 9 |
| ST 5960 | RG59 & RG6 Jacket, Braid, Dielectric | 9 |
| ST 2590* | RG59/8281 Jacket & Dielectric | 11 |
| ST 3590* | RG59 Jacket, Dielectric, Braid | 11 |
| ST 3580* | RG58/62 Jacket, Dielectric, Braid | 11 |
| ST 3820* | Belden 8281 Jacket, Dielectric, Braid | 11 |
* Series stripping tools offer a quick and effective means of stripping coaxial cables. Each tool is factory pre-set and requires no adjustment other than moving the blade to a fresh cutting surface when it becomes dull (approx. 2,000 strips).
Insertion Tools
D Subminiature
| Nemal Part Number | Figure Number |
| CT 250 | 13 |
* Pin holder, locator, Full Ratchet
Coring Tools (75 Ohm Trunkline)
Prepares cable for connector installation
| Nemal Part Number | Application | Figure Number |
| CT 500 | 0.500” Coring/Stripping | 14 |
Cable Tie Installation
Pistol Grip - Applies proper tension to cable tie and cuts flush
| Nemal Part Number | Tie Sizes | Military Reference | Figure Number |
| CT100CAT | CAT4-CAT14 | MS90387 | 15 |
Crimping Tools - Terminal
| Nemal Part Number | Application | Wire Sizes | Figure Number |
| CT 1100 | Cuts, Strips wire, crimps insulated, non-insulated terminals | 10-22 Ga. | 16 |
| CT 1110 | Crimps insulated terminals ratchet | 10-22 Ga. | 8 |
Stripping/Crimping Tools - Telephone
| Nemal Part Number | Application | Cable Sizes | Figure Number |
| CT 1746 | Cuts, strips, crimps flat satin telephone cables to modular plugs | 4-6 conductor | 17 |
| CT 1780 | Cuts, strips, crimps flat satin telephone cables to modular plugs | 8 conductor | 17 |
| CT 1744 | Cuts, strips, crimps flat satin telephone cables to modular plugs | 4 conductor Handset only | 17 |
Not sure which tool matches your connector or cable specification?
Our engineering team can recommend compatible tooling based on:
• Cable model • Connector type • Application environment • Installation frequency
Test and Operate with Confidence
Let us know what you need to test regularly and we'll provide you with a range of options.
