Audio Snakes

AUDIO SNAKES

FLEXIBLE, ANALOG AND DIGITAL

Thank you for contacting us!
This field is required
This field is required
This field is required
This field is required
This field is required

Analog-Line Level Balanced Audio

Flexible analog audio snake cable, 12, 24 and 54 individually shielded and jacketed 24awg pair with 24awg tinned copper drain wire. Black TPR jacket Available in any bulk custom length from 1-2000 ft. or terminated with Neutrik XLR connectors and/or stage box.

Digital

Flexible digital audio snake cable (AES/EBU), 8 individually shielded and jacketed 24awg pair with 24awg tinned copper drain wire. Black TPR jacket. Available in bulk custom cut lengths from 1-1500ft or terminated with Neutrik XLR connectors.

22 AWG-UL CMR (Riser)

  • Excellent noise rejection and low attenuation
  • Individually shielded, numbered jacketed pairs
  • Easy strip jacket
  • Overall 100% foil shield and drain-Flex TPR Jacket
  • Nom Cap: 26pf/ft (85pf/m) between conductors
  •                   :48pf/ft (157pf/m) cond-cond/shield
  • Nom DCR: (cond) 15.3 Ohms/M (50.1 ohms/km)
  •                 : (shield) 15.3 Ohms/M (50.1 ohms/km)
  • Available fully terminated to your specifications with either fanout or stage box
Nemal P/N Number of pairs OD (nom) Weight

In

mm

Lbs/Mft

KG/KM

SN0422ULR

4

0.441

11.2

82

123

SN0622ULR

6

0.525

13.3

113

168

SN0822ULR

8

0.605

15.4

155

232

SN01222ULR

12

0.645

16.4

210

313

SN01622ULR

16

0.725

18.4

271

405

SN02422ULR

24

0.999

25.4

404

602

24 AWG-Extra Flex Jacket 105C

  • Excellent noise rejection and low attenuation
  • Individually shielded, numbered jacketed pairs
  • Easy strip jacket
  • Overall 100% foil shield and drain-Flex TPR Jacket
  • Nom Cap: 28pf/ft (91pf/m) between conductors
  •                   :51pf/ft (167pf/m) cond-cond/shield
  • Nom DCR: (cond) 23.8 Ohms/M (78 ohms/km)
  •                 : (shield) 23.8 Ohms/M (78 ohms/km)
  • Available fully terminated to your specifications with either fanout or stage box
Nemal P/N Number of pairs OD (nom) Weight

In

mm

Lbs/Mft

KG/KM

SN0424

4

0.390

9.9

74

111

SN0624

6

0.468

11.9

106

157

SN0824

8

0.510

13.0

138

206

SN01224

12

0.611

15.5

186

278

SN01624

16

0.685

17.4

241

359

SN02424

24

0.846

21.5

348

519

SN3224

32

0.937

23.8

449

669

SN5424

54

1.159

29.4

693

1,033

24 AWG-Digital Audio Snake Cables AES/EBU

  • Excellent noise rejection and low attenuation
  • Individually shielded, numbered jacketed pairs
  • Easy strip jacket
  • Impedance: 110 Ohms nominal
  • Color code: Black, Red
  • Overall 100% foil shield and drain-Flex Jacket
  • Nom Cap: 12.5pf/ft (41pf/m) between conductors:
      25pf/ft (82pf/m) cond-cond/shield
  • Nom DCR: (cond) 23.8 Ohms/M (78 ohms/km):
      (drain) 23.8 Ohms/M (78 ohms/km)
  • Available fully terminated to your specifications with either fanout or stage box
Nemal P/N Number of pairs OD (nom) Weight

In

mm

Lbs/Mft

KG/KM

SND0224

2

0.444

11.3

67

100

SND0424

4

0.515

13.1

104

156

SND0624

6

0.616

15.6

145

216

SND0824

8

0.788

20.0

191

285

SND1224

12

0.844

21.4

255

380

SND1624

16

0.938

23.8

351

524

SND2424

24

1.03

29.5

501

747

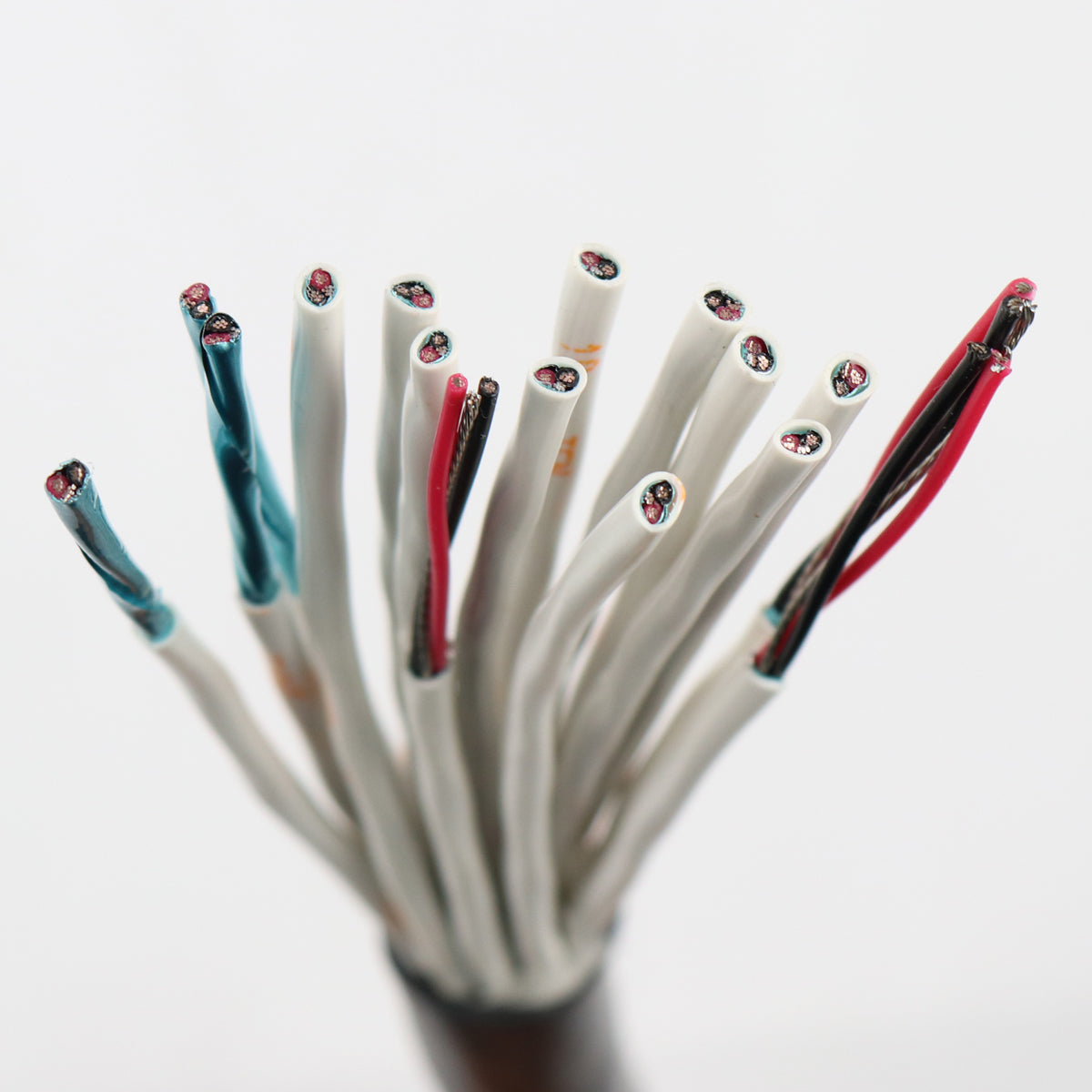

Audio Snake Cable Analog 8-Pair 24Awg Flex Jacket

Sold out

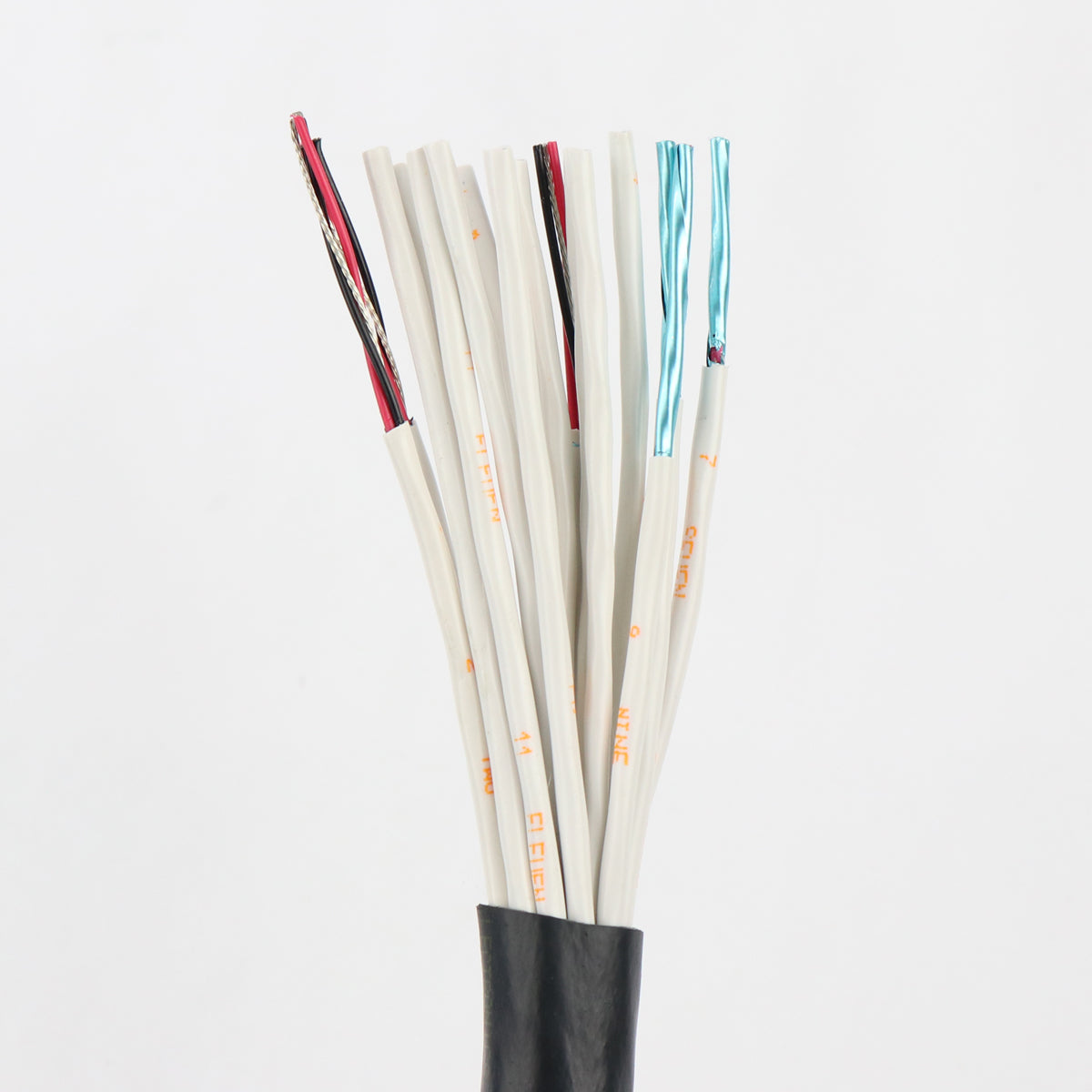

Audio Snake Cable Analog 12-Pair 24Awg Flex Jacket

Sold out

Audio Snake Cable Digital 24-Pair 24Awg Flex Jacket

Sold out

Audio Snake Cable Analog 54-Pair 24 Awg Flex Jacket

Sold out

CAN'T FIND THE AUDIO SNAKE YOU NEED?
SEND US A NOTE

Our online product selection is only a fraction of what we offer. Most of our solutions are custom made and delivered to your specifications. Let us know what you're looking for and we'll work with you in making it happen.

Prefer to reach someone right now? Chat with one of our reps or call us at (800) 522-2253, Monday to Friday, from 8am to 6pm EST. Call (305) 899-0900 if you're in the United States.
