Microphone Cables
- 4-Conductor 24awg Star Quad type flexible microphone cables are the ideal choice for any audio application. The 4 conductors are twisted into 2 pair to provide excellent electrical properties. Its thick wall TPR jacket and tinned copper braid add extra strength and durability. It is available in 10 colors, and also terminated in any length with Neutrik XLR connectors.
DMX Cables
- DMX Cables are high performance digital cables using stranded 24 awg conductors with either single or double shields. Standard jacket color is black, however the cable is available in 10 colors. We offer custom print and custom labeling (minimums apply).
MICROPHONE AND DMX CABLES CHART
ONE AND TWO PAIRS
| Nemal P/N | Description | Belden Reference | Conductors | Shielding | Jacket Type | Jacket Diameter in/mm | Weight lb/1000ft kg/km | Capacitance bet cond-pf/ft pf/m |
| MC424P | Star Quad Microphone Cable | 1192A | 4-19/36bc | 85% TC braid | TPR 105C | .242/6.2 | 37/55 | 39/128 |
| MC220R | Microphone Cable-rugged flex | 8412 | 2-20 awg 19/32tc | 85% TC braid | TPR 105C | .260/6.6 | 47/70 | 30/98 |
| 2201A | Line level analog 1pr | 8451 | 2-22awg 7/30tc | 100% foil+ 22tc drain | PVC 75C | .135/3.5 | 16/23 | 34/111 |
| 2201B | Line level analog 1pr | - | 2-22awg 7/30tc | 95% tc braid | PVC 75C | .140/3.6 | 17/24 | 34/111 |
| 2401D | line level digital 1pr | 1800B | 2-24awg 7/32tc | 100% foil+ 24tc drain | PVC 60C | .180/4.6 | 16/23 | 12/39 |
| 2402D | DMX 2pr | - | 2pr 24awg 7/32tc | 100% foil+ 24tc drain | PVC 60C | .210/5.4 | 20/30 | 12/39 |
| 2401DS | DMX 1pr | 1800F | 2-24awg 7/32tc | 95% TC braid | PVC 60C | .210/5.4 | 24/36 | 12/39 |
Studio Microphone Cable Assembly- Neutrik Black/Gold XLR Male-Female
Sold out

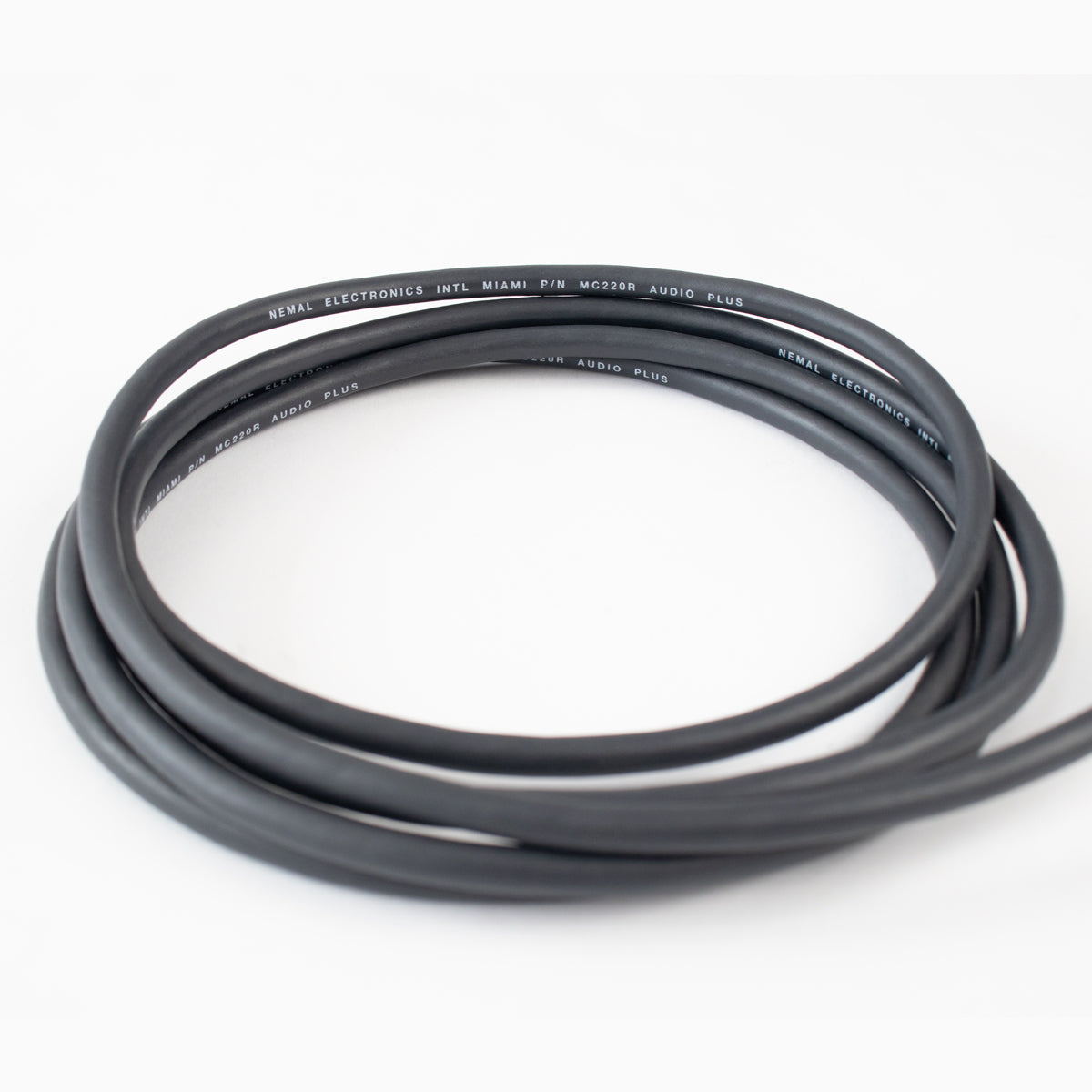

Microphone cable braid shield 2 conductor 20 awg flex jacket
Sold out

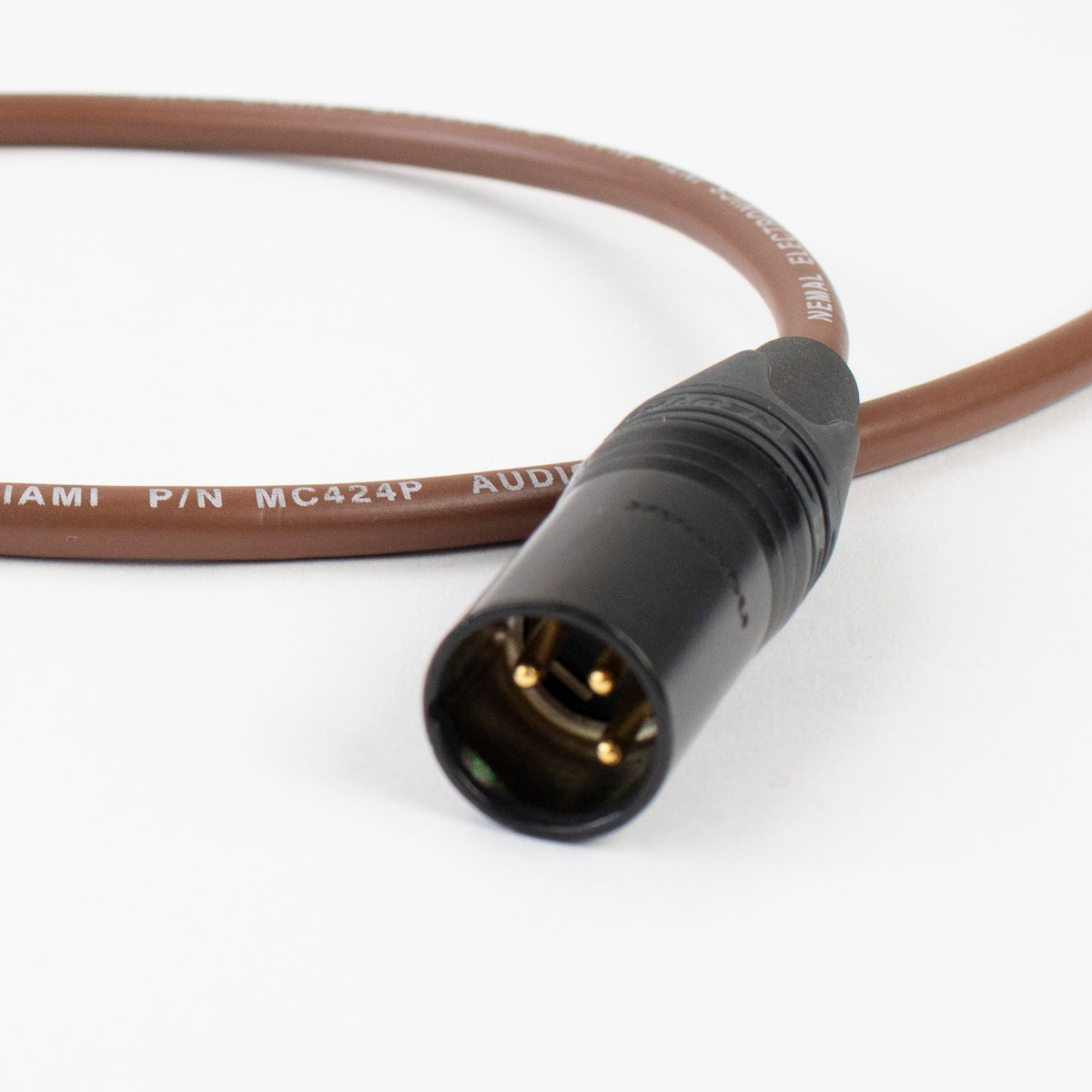

Microphone Cable-Braid Shield Starquad 2-Pair 24 Awg Flex Jacket
Sold out
DMX Cable Assembly XLR 5-Pin Plug to Jack
Sold out
DMX Cable Assembly XLR 3-Pin Plug to Jack
Sold out
Digital Audio Cable-AES/EBU DMX 1 Pair 24Awg Stranded-Braided Shield
Sold out
Digital Audio Cable-AES/EBU DMX 1 Pair 24Awg Stranded-Braided Shield
Sold out
Digital Audio Cable-AES/EBU DMX 1 Pair 24Awg Stranded-Braided Shield
Sold out
