SMPTE hybrid fiber camera cables combine multiple signal paths and power delivery into a single rugged assembly. While this design simplifies camera connectivity, it also makes troubleshooting significantly more difficult when problems arise.

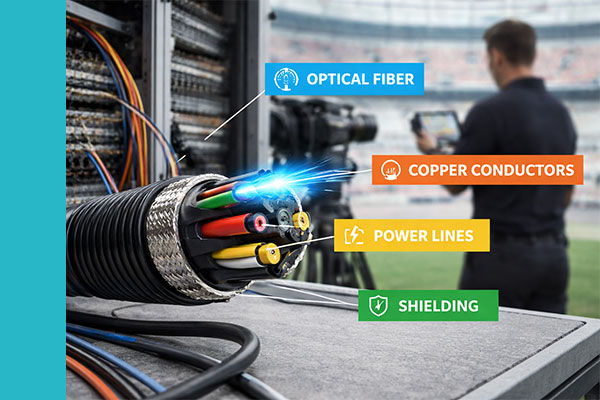

A single cable can carry:
• Single-mode optical fiber for video and data
• Copper conductors for control signals
• Power lines for camera operation
• Shielding for signal protection

When performance degrades, engineers must quickly determine which path has failed — optical, electrical, or mechanical.

Without specialized diagnostic tools, identifying the source of the problem can require disconnecting cables, swapping equipment, or performing time-consuming manual checks.

The NuGEN V2 Hybrid Cable Tester is designed specifically for diagnosing SMPTE hybrid camera cables in broadcast environments. Instead of testing each system independently, the platform evaluates the cable as a complete assembly — allowing engineers to quickly determine where a failure occurs.

With a single portable unit, technicians can verify the integrity of both optical and electrical paths without removing cables from service or interrupting workflows.

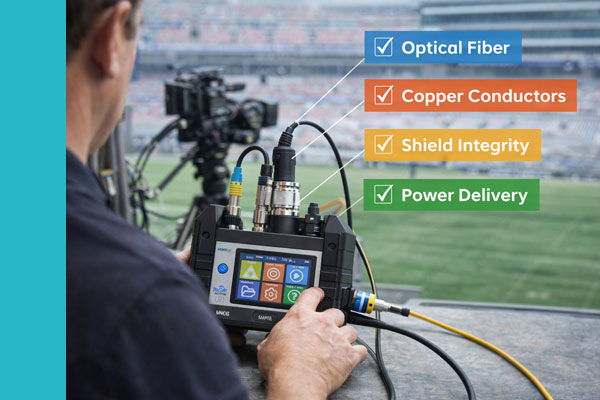

The system enables engineers to test and confirm:

• Optical fiber performance
• Copper conductor continuity
• Shield integrity
• Power delivery across the cable

By isolating faults quickly, the NuGEN V2 helps engineers maintain signal reliability and minimize troubleshooting time during live production and system deployment.

Bottom Line

Instead of relying on trial-and-error troubleshooting, engineers can diagnose SMPTE hybrid cable issues quickly, accurately, and in the field.
