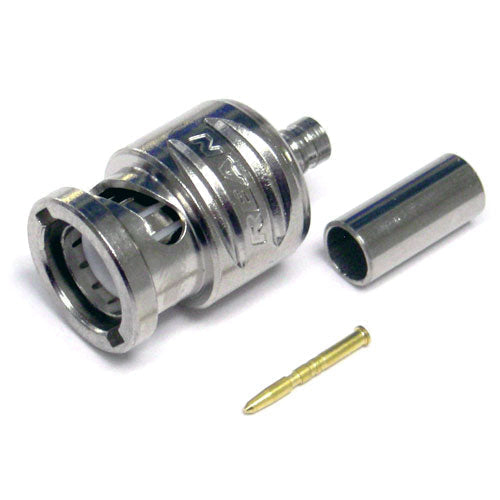

Rean RB75BYY11 BNC Crimp Plug 75 Ohm HD/SDI for Canare L-5CFB
Nemal Electronics
Rean's 3-Piece crimp 75 Ohm BNC for 3G-HD/SDI applications using Belden 1505A and other standard coaxial cables including:
Argosy Image 720; Belden 8241F; Canare L-4CFB; CommScope 5565; Draka 0.8/3.7 AF, 755-1 801 (803,804); Gepco VPM2000; Suhner S0426; Proel HPC 810; Sommer 600-0451, 600-162(F); Van Damme 278 275 / 268 306
Suggested crimp tool is the Neutrik HX-R-BNC with appropriate die
Rean BNCs offer high performance and reliability throughout the frequency range, and are suitable for use in a wide range of environmental conditions. We suggest using Nemal cable boots or other protective options for outdoor applications. Installation time using standard tooling is less than 1 minute.
Specifications:
- Electrical
- 75Ω impedance
- Contact resistance
- ≤3mΩ pin
- ≤2mΩ shield
- >5GΩ insulation resistance
- >1.5kVDC dielectric strength
- 500V rated voltage
- Return loss
- >32dB up to 1GHz
- >30dB up to 2GHz
- >26dB up to 3GHz
- Environmental
- -30°C to +85°C operating temperature range
- IEC 60169-8, MIL 348A standard compliance
- Contact crimpability complies with IEC60803 and IEC 60352-2
- Mechanical
- >1000 mating cycles lifetime
- >30N center cable retention
- ≤25N insertion force
- Bayonet locking device
- Jacket crimping cable anchoring
- Material
- CuZn35Pb2 center contact
- 0.1µm Au center contact plating
- PTFE insulator
- ZnAl4Cu1, Ni-plated housing
- CuSn6, Ni-plated ground contact
