Nemal XLR 4-Pin Female to 5-Pin Male Inline Adapter
XLR4F5M
$30.85

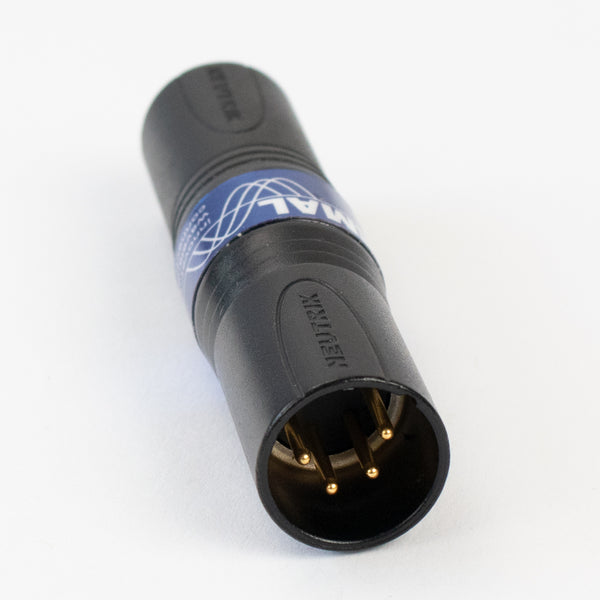

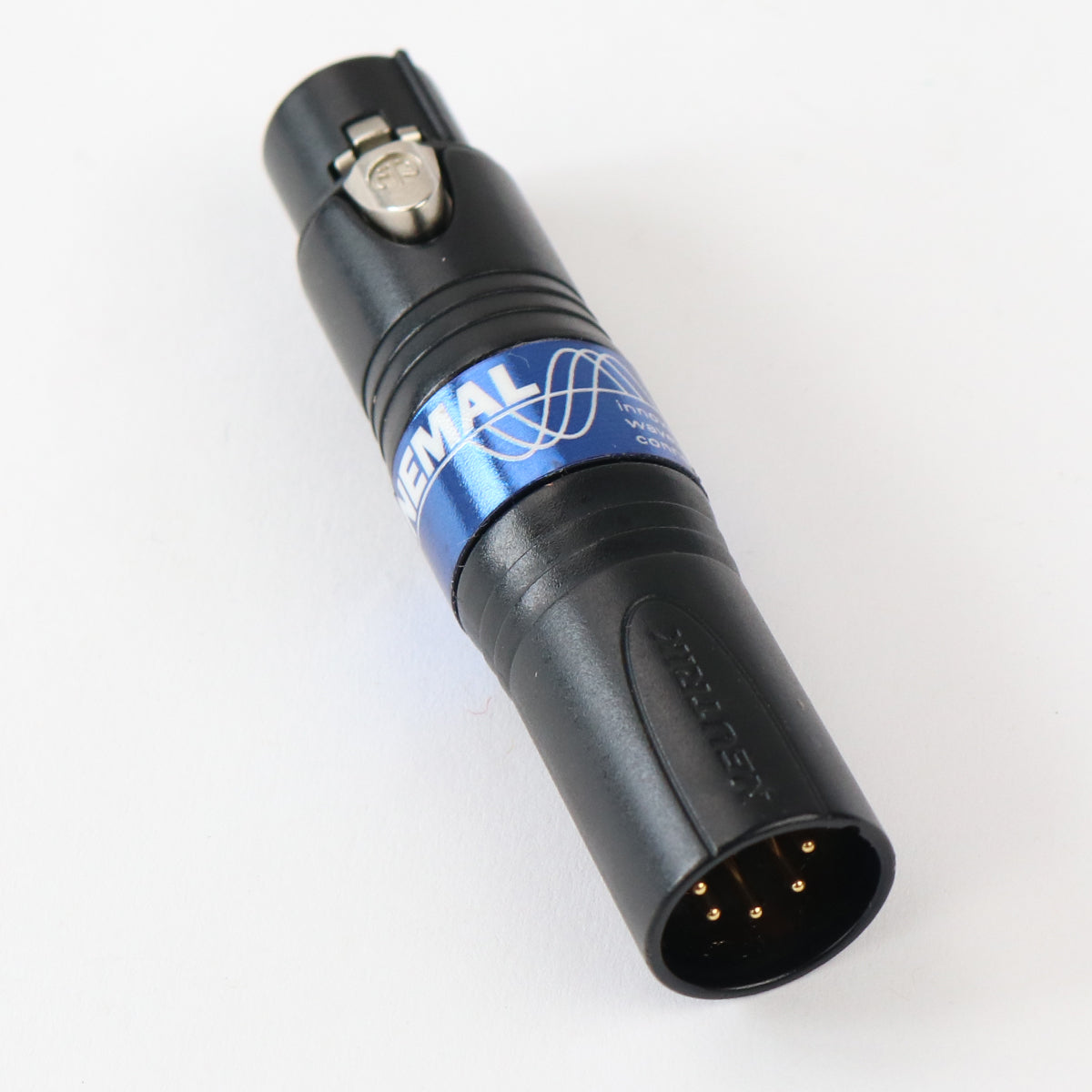

XLR Inline Adapter from 4-Pin Female to 5-Pin Male. Allows for easy connection between a cable with a 4-Pin Male and a cable with a 5-Pin Female. Wired per Nemal Spec.

XLR In-Series Adapters

Part No.

Description

(mm)                     (mm)

XLR3F4F

3-Pin Female to 4-Pin Female

3.60 (86.4)

.81 (20.6)

XLR3F5F

3-Pin Female to 5-Pin Female

3.60 (86.4)

.81 (20.6)

XLR4F4F

4-Pin Female to 4-Pin Female

3.60 (86.4)

.81 (20.6)

XLR4F5F

4-Pin Female to 5-Pin Female

3.60 (86.4)

.81 (20.6)

XLR4F5M

4-Pin Female to 5-Pin Male

3.40 (91.4)

.81 (20.6)

XLR4M4M

4-Pin Male to 4-Pin Male

3.20 (81.3)

.81 (20.6)

XLR5F3M

5-Pin Female to 3-Pin Male

3.40 (91.4)

.81 (20.6)

XLR5F5F

5-Pin Female to 5-Pin Female

3.60 (86.4)

.81 (20.6)

XLR5M5M

5-Pin Male to 5-Pin Male

3.20 (81.3)

.81 (20.6)



Electrical

  • Capacitance between contacts ≤ 7 pF
  • Contact resistance ≤ 3 mΩ
  • Dielectric strength 1,5 kVdc
  • Insulation resistance > 10 GΩ (initial)
  • Rated current per contact 10 A
  • Rated voltage < 50 V

 Mechanical

  • Insertion force ≤ 20 N
  • Withdrawal force ≤ 20 N
  • Lifetime > 1000 mating cycles

 Materials

  • Boot Polyurethane
  • Contact plating: 2 μm Gold over 2 μm Nickel
  • Contacts: Brass
  • Insert: Polyamide
  • Shell: Zinc diecast
  • Shell plating: Nickel

 Environmental

  • Flammability UL 94 HB
  • Standard compliance IEC 61076-2-103
  • Protection class IP 40
  • Solderability Complies with IEC 68-2-20
  • Temperature range -30 °C to +80 °C1
