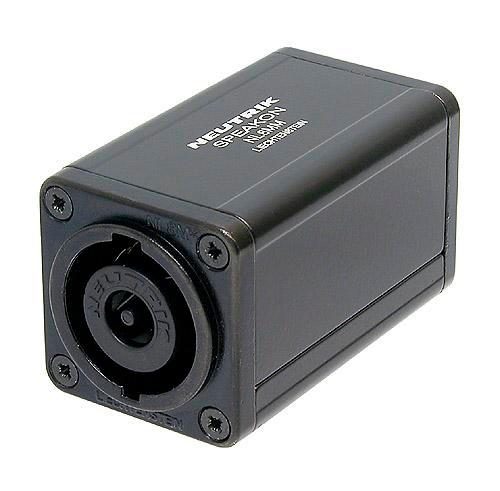

Neutrik SpeakOn NL8MMX 8 Pole Coupler Adapter-SP Series
Neutrik
Technical Information
|
Product |
|
|
Title |
NL8MMX |
|
Connection Type |
Adapter |
|
Gender |
male |
|
Electrical |
|
|
Contact resistance |
≤ 3 mΩ (after lifetime) |
|
Dielectric strength |
4 kVdc (peak) |
|
Insulation resistance |
> 1 GΩ (after dampheat) |
|
Rated current per contact |
15 A rms continuous |
|
Rated current per contact |
30 A audiosignal, duty cycle 50 % |
|
Rated voltage |
250 V (Insulation) |
|
Attention |
speakON is NOT to be used as an AC mains or power supply connector! |
|
Mechanical |
|
|
Lifetime |
> 5000 mating cycles |
|
Wiresize |
|
|
Locking device |
Quick Lock |
|
Material |
|
|
Contact plating |
4 µm Ag |
|
Contacts |
Bronze (CuSn6) |
|
Insert |
Polyamide (PA 6 30 % GR) |
|
Shell |
Polyamide (PA 6 30 % GR) |
|
Environmental |
|
|
Flammability |
UL 94 HB |
|
Solderability |
Complies with IEC 68-2-20 |
|
Temperature range |
-30 °C to +80 °C |
