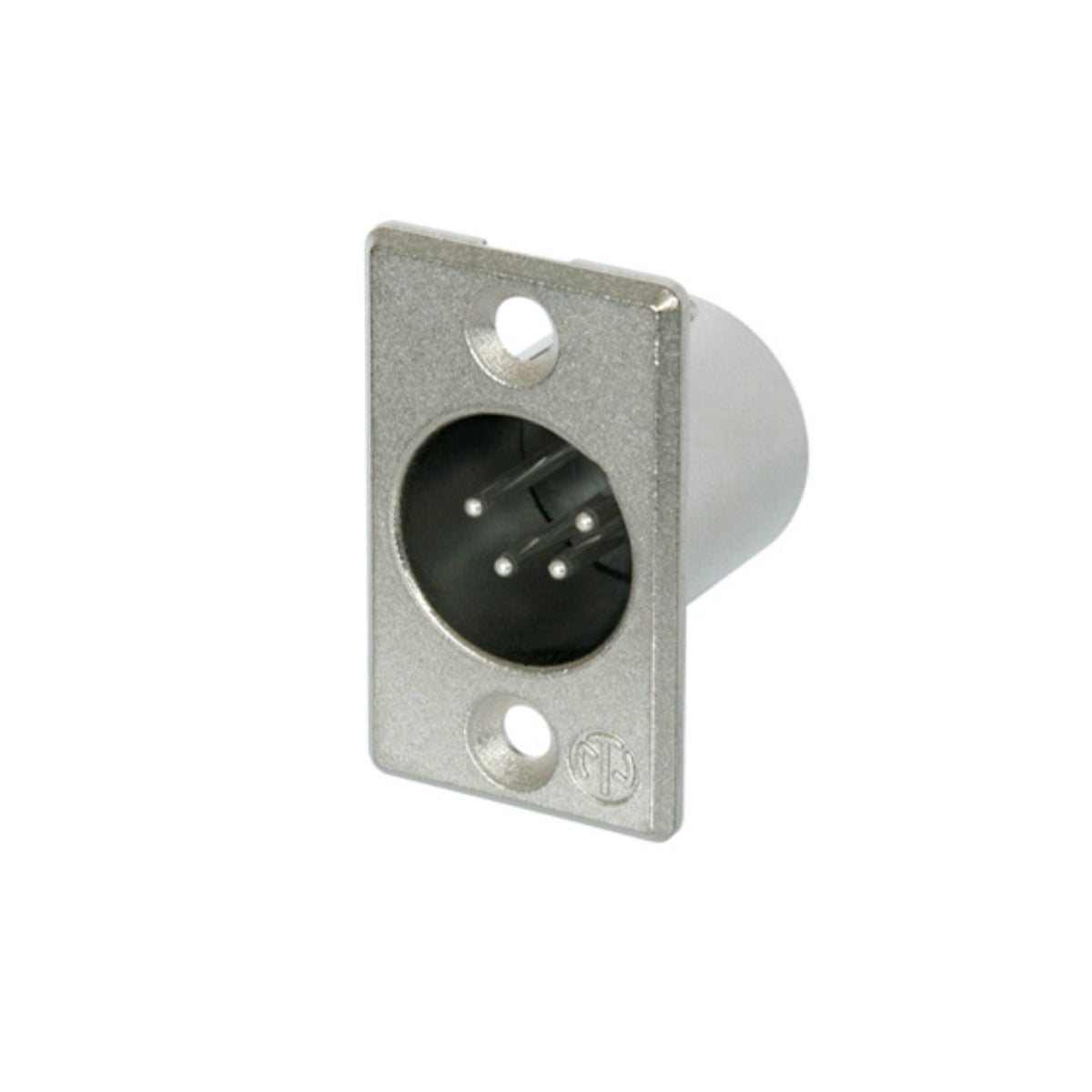

Neutrik NC4MP 4-Pin XLR Male Chassis Receptacle P Series
NC4MP
$3.09

The Neutrik P-Series is the smallest available traditional style metal panel mount connector. Available in 3,4,5,6 and 7 pin configuration with silver or gold plated contacts and either black or nickel body. The series features large solder cups for ease hard wiring.

Nemal manufactures a wide range of standard and custom XLR panels including optional pre-wiring and laser engraving

NC4MP (Legacy Series)
Male Type XLR Panel Receptacle
Electrical
Capacitance between contacts ≤ 4 pF
Contact resistance ≤ 5 mΩ
Dielectric strength 1,5 kVdc
Insulation resistance > 10 GΩ (initial)
Rated current per contact 16 A
Rated voltage < 50 V
Mechanical
Insertion force≤ 20 N
Withdrawal force ≤ 20 N
Lifetime > 1000 mating cycles
Solder contacts-silver plated
Locking device Latch lock
Front Mounting
P-Style Chassis
Material
Contact plating 2 µm Ag over 2 µm Ni
Contacts Brass (CuZn35Pb2)
Insert Polyamide (PA 6.6 30 % GR)
Locking element Steel Ck67
Shell Zinc diecast (ZnAl4Cu1)
Shell plating Nickel
Environmental
Flammability UL 94 HB
Standard compliance IEC 61076-2-103
Protection class IP 40
Solderability Complies with IEC 68-2-20
Temperature range -30 °C to +80 °C
