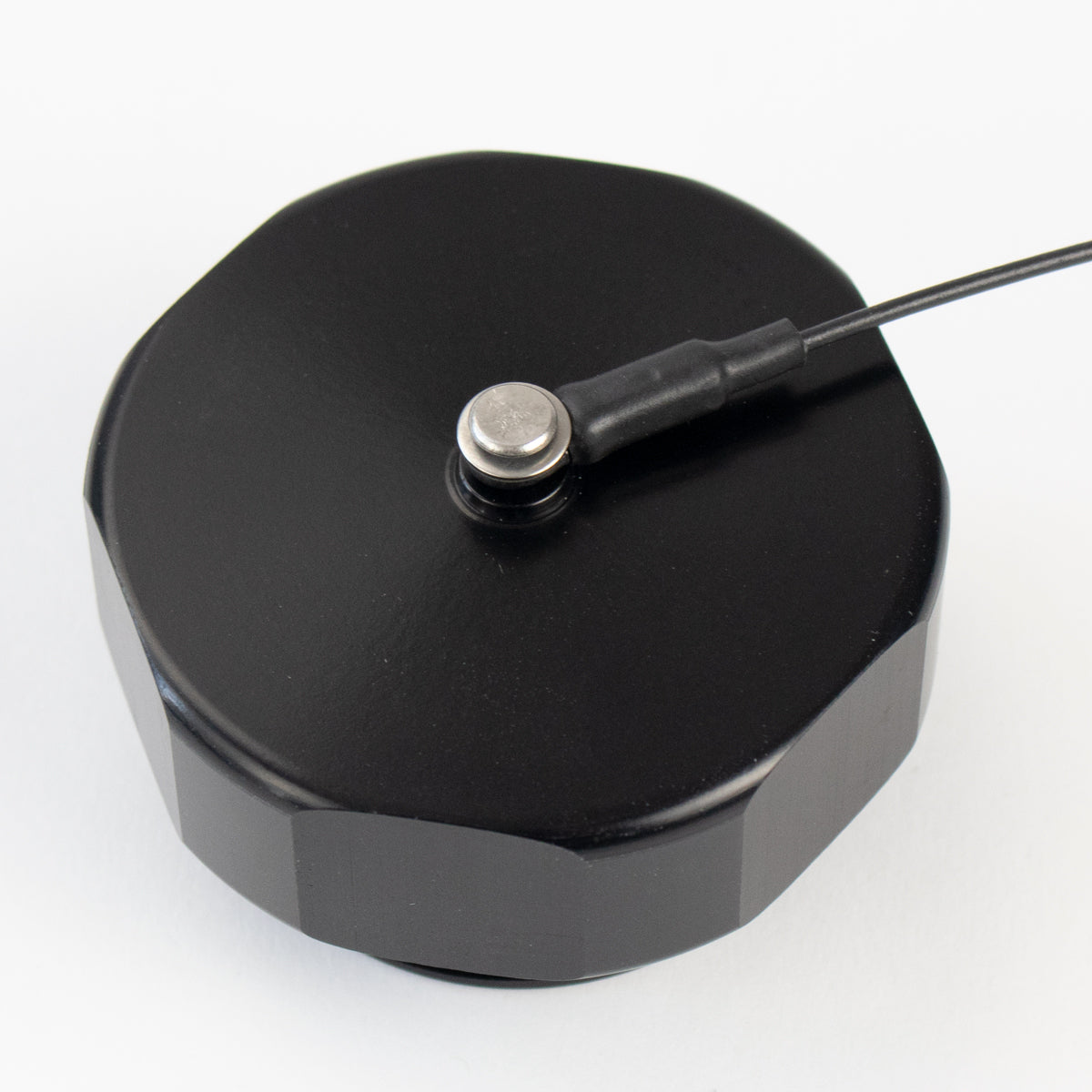

Nemal DT12 Male Cap With Lanyard (Fits Female DT12 Connectors)
Nemal DT12 Male Cap With Lanyard (Fits Female DT12 Connectors) Nemal DT12 Male Cap With Lanyard (Fits Female DT12 Connectors) Nemal DT12 Male Cap With Lanyard (Fits Female DT12 Connectors)
NE3740MC
$26.78

The Nemal NE3740MC is the male cap  (Connector NOT included) in the DT-12 Series of 12-channel audio connectors (fits on NE3710F and NE3730FP). Nemal DT-12 Connectors are the industry choice for use in mobile broadcast and rugged field applications. .We manufacture DT-12 assemblies in standard or custom lengths from 3 to 1500 ft. Please see our DT-12 accessories including fan-outs and tooling.

Technical Specifications:

  • Solder Contacts: 16 AWG Max Wire Size, Machined Copper
  • Plating: Gold 3 micron iaw Mil-G 45204
  • Back Shell: Hard Anodized Aluminum, Black
  • Shell: Stainless Steel (Male), Hard Anodized (Female)
  • Insulator: Neoprene
  • Current Rating: 13 Amperes
  • Voltage Rating: 700 volts DC, 500 volts AC
  • Test Voltage: 1500 volts AC
