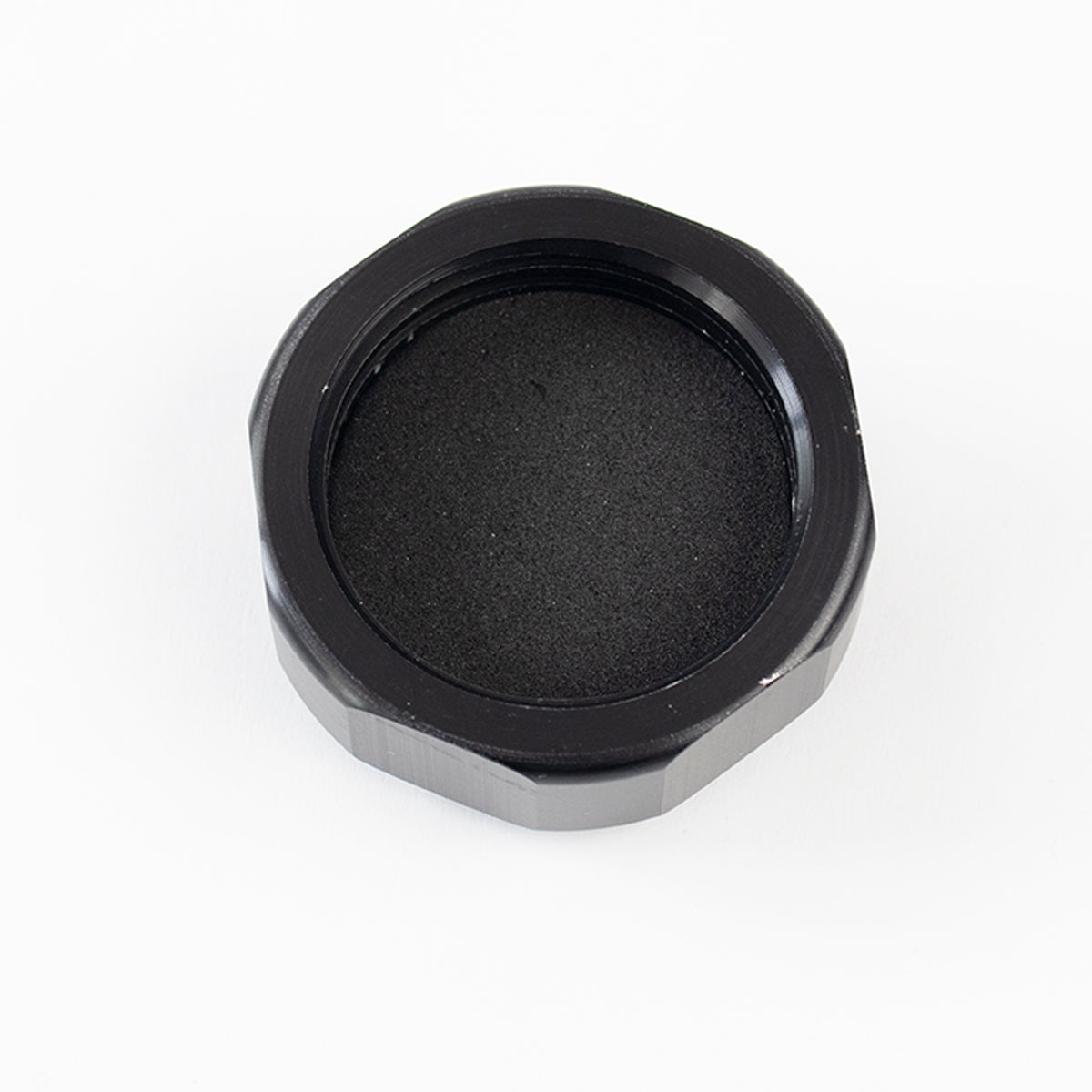

Nemal DT12 Female Cap with Lanyard (Fits Male Connectors)

The Nemal NE3750FC is the female cap (Connector NOT INCLUDED) in the DT-12 Series of 12-channel audio connectors (fits on NE3700M and NE3720MP). Nemal DT-12 Connectors are the industry choice for use in mobile broadcast and rugged field applications. We manufacture DT-12 assemblies in standard or custom lengths from 3 to 1500 ft. Please see our DT-12 accessories including fan-outs and tooling.

Technical Specifications:

• Solder Contacts: 16 AWG Max Wire Size, Machined Copper
• Plating: Gold 3 micron iaw Mil-G 45204
• Back Shell: Hard Anodized Aluminum, Black
• Shell: Stainless Steel (Male), Hard Anodized (Female)
• Insulator: Neoprene
• Current Rating: 13 Amperes
• Voltage Rating: 700 volts DC, 500 volts AC
• Test Voltage: 1500 volts AC
