Nemal 37-Pin DT12 Male Cable Mount Connector
Nemal Electronics

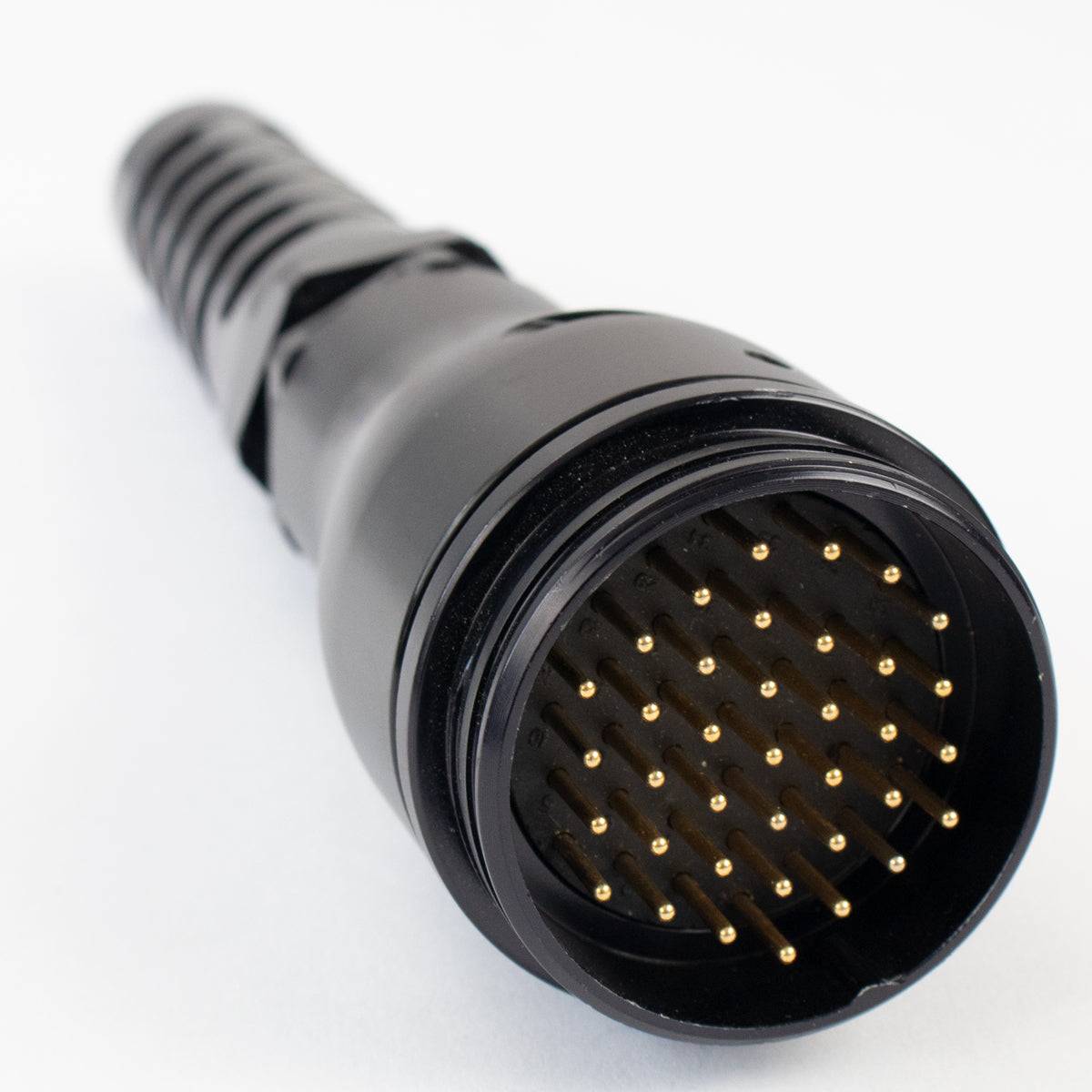

The Nemal NE3700M is a male cable attachable plug in the DT-12 Series of 12-channel audio connectors. It comes standard with a rugged 6" flexible strain relief, and is also available with a steel housing (NE3700MS) and an optional protective steel cap.
Nemal's patented DT-12 connectors are the industry standard for outdoor/broadcast applications.We manufacture DT-12 assemblies in standard or custom lengths from 3 to 1500 ft. Please see our DT-12 accessories including fan-outs and tooling.
Technical Specifications:
- Solder Contacts: 16 AWG Max Wire Size, Machined Copper
- Plating: Gold 3 micron iaw Mil-G 45204
- Back Shell: Hard Anodized Aluminum, Black
- Shell: Stainless Steel (Male), Hard Anodized (Female)
- Insulator: Neoprene
- Current Rating: 13 Amperes
- Voltage Rating: 700 volts DC, 500 volts AC
- Test Voltage: 1500 volts AC
