Nemal 37-Pin DT12  Female Cable Mount Connector
NE3710F
$143.79

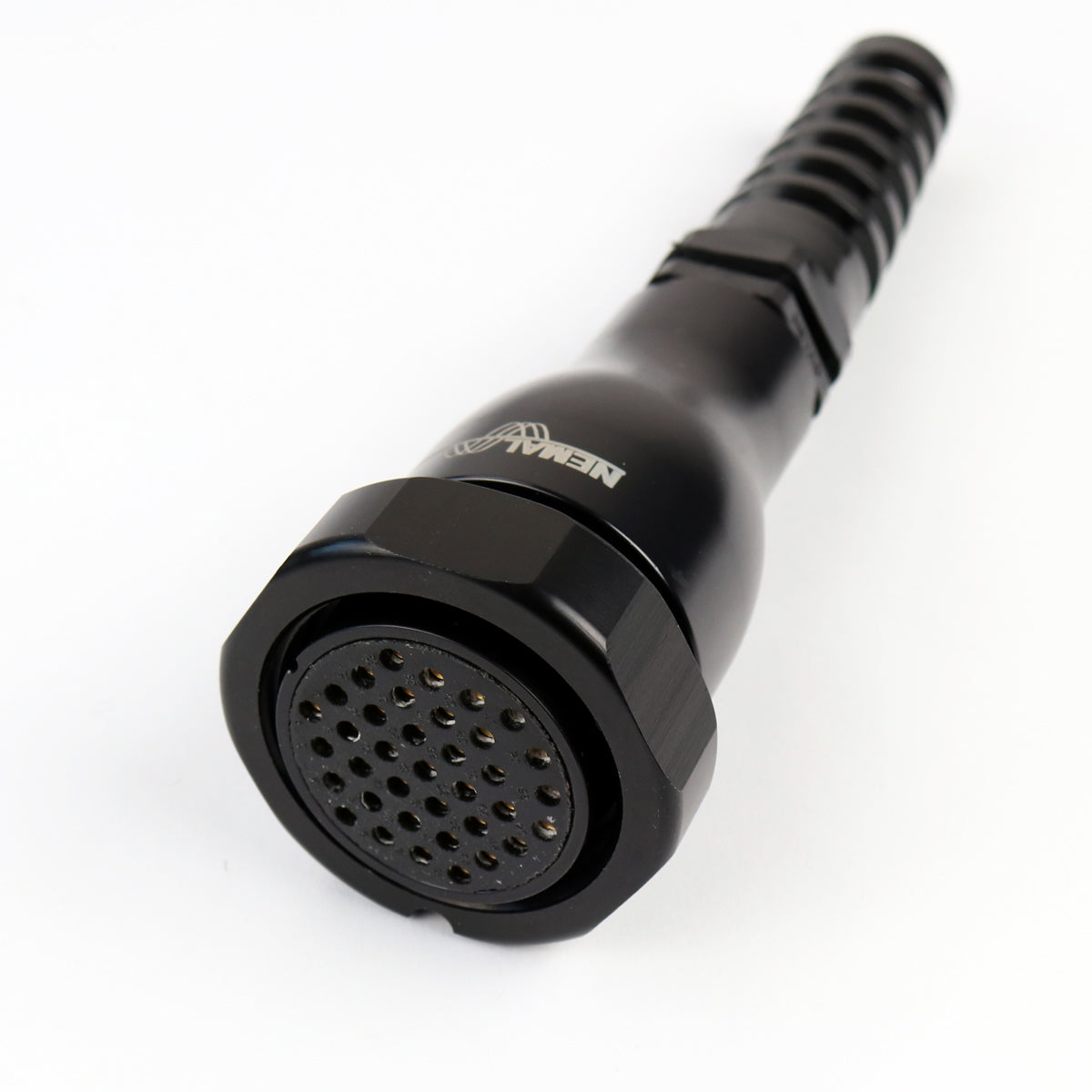

The Nemal NE3710F is a female cable attachable plug in the DT-12 Series of 12-channel audio connectors. It comes standard with a rugged 6" flexible strain relief, and is also available with an optional protective steel cap. Nemal DT-12 Connectors are the industry choice for use in mobile broadcast and rugged field applications.

We manufacture DT-12 assemblies in standard or custom lengths from 3 to 1500 ft. Please see our DT-12 accessories including fan-outs and tooling.

Technical Specifications:

  • Solder Contacts: 16 AWG Max Wire Size, Machined Copper
  • Plating: Gold 3 micron iaw Mil-G 45204
  • Back Shell: Hard Anodized Aluminum, Black
  • Shell: Stainless Steel (Male), Hard Anodized (Female)
  • Insulator: Neoprene
  • Current Rating: 13 Amperes
  • Voltage Rating: 700 volts DC, 500 volts AC
  • Test Voltage: 1500 volts AC
