BNC Angle Adapter 75 Ohm 3 Ghz Jack to Plug (Eq Amphenol 112454)

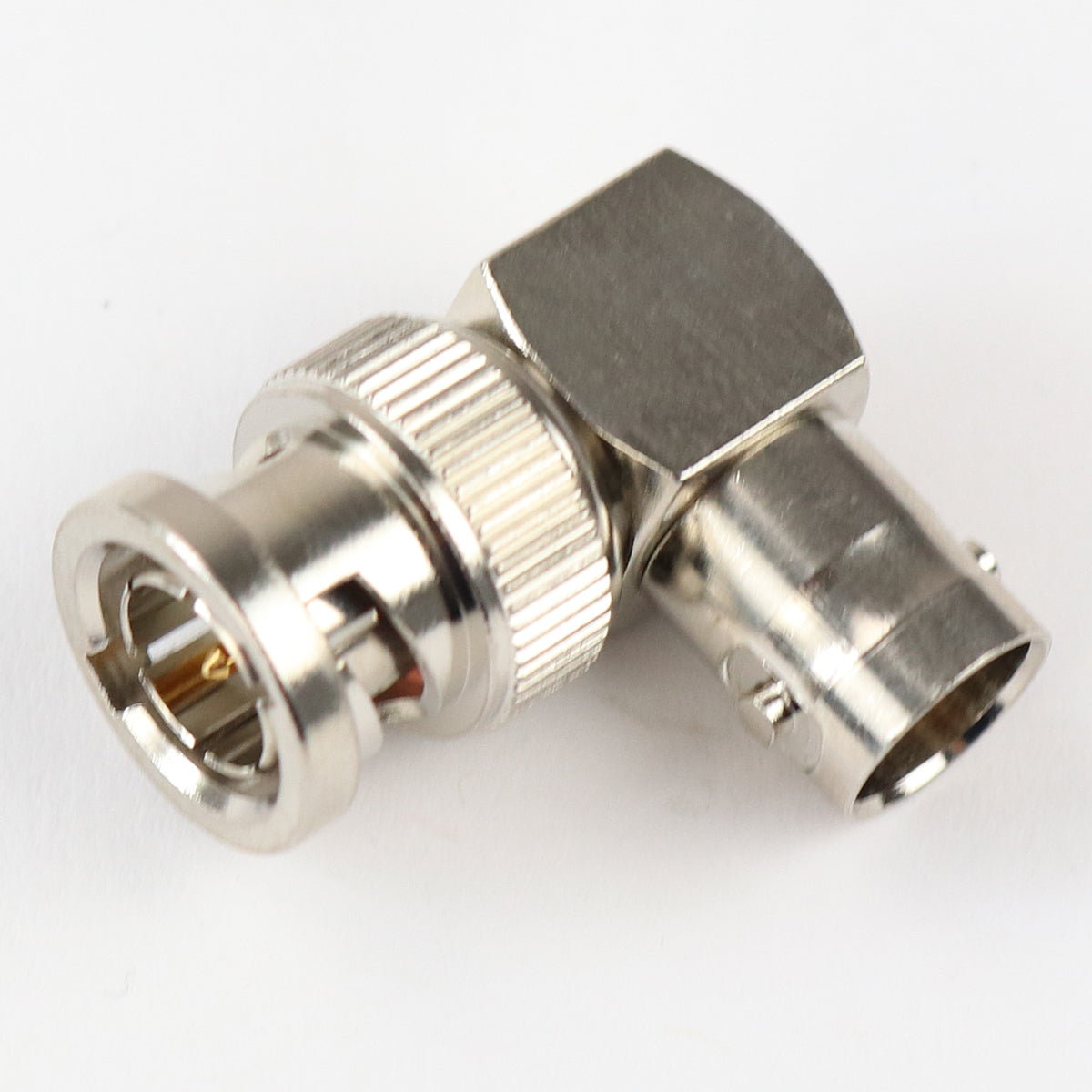

NE8331 is Nemal's Precision 75 Ohm BNC In-Series adapter, Right Angle configuration, Plug-Jack. It allows interconnection between a BNC plug and BNC jack at a 90 degree angle, without putting stress on either of the connectors.

75 Ohm BNC Adapters and Terminations

Part No.	Description	(mm) (mm)
NE8327	Jack-Jack Bulkhead	1.28 (32.5)	0.63 ( 16.0 )
NE8329	“T” J-P-J	1.28 (32.5 )	1.06 (26.9 )
NE8331	Plug-Jack Angle	0.90(22.9 )	1.03 (26.0 )
NE8333	Jack-Jack	1.28 (32.5 )	0.44 (11.2 )
TR75B-75	Termination	1.28 (32.5 )	0.56 (14.2 )
NE910-75	F Jack-Type N Plug	1.28 (32.5)	0.56 (14.2)
NE911-75	Type N Plug-F Plug	1.50 (38.1)	0.47 (11.9)
NE912-75	BNC Jack-F Plug	1.28 (32.5)	0.56 (14.2)
NE913-75	Type N Jack-F Jack	1.56 (39.6)	0.63 (16.0)
NE918-75	BNC Jack-RCA Plug	1.40 (35.6)	0.44 (11.2)
NE920-75	F Jack-BNC Plug	1.50 (38.1)	0.47 (11.9)
NE922-75	RCA Jack-BNC Plug	1.28 (32.5)	0.56 (14.2)
UG349A-75	Type N Jack-BNC Plug	1.56 (39.6)	0.63 (16.0)

Mechanical

Durability: 500 Cycles Min Center Contact
Center Contact Retention: 6 lbs. Minimum
Coupling Mechanism: 100 lbs. Minimum
Force to Engage/Disengage: Torque 2.5 in-lbs. Max.;
Longitudinal force 3.0 lbs. Max.
Interface Dimension: MIL-C-39012 except 75 Ohms

Electrical

Characteristic Impedance: 75 Ohms
Voltage Rating: 500 Volts RMS
Return Loss:
Less than -36 dB to 1 GHz;
-25 dB to 2 GHz;
-23 dB to 3 GHz;
-20 dB to 5 GHz
Contact Resistance:
Center Contact .0014 Ohms
Outer Contact .002 Ohms
Insulation Resistance: 5000 megohms

Environmental

Thermal Shock: -65°C to +165°C
Moisture Resistance: 0 to 95%: MIL-STD-202 Method 106
Corrosion (Salt Spray): MIL-STD-202 Method 101Test Condition B
Flammability: UL 94-VO Rated(Center Conductor Insulator)
Vibration: MIL-STD-202 Method 204Test Condition B
Solvent Resistance: MIL-STD-202 Method 215

Finishes

Body/Bayonet: Nickel
Center Conductor: 50 millionths inch gold plating over copper plate
