Adapter 75 Ohm RCA Jack To BNC Plug
NE922-75
$2.25

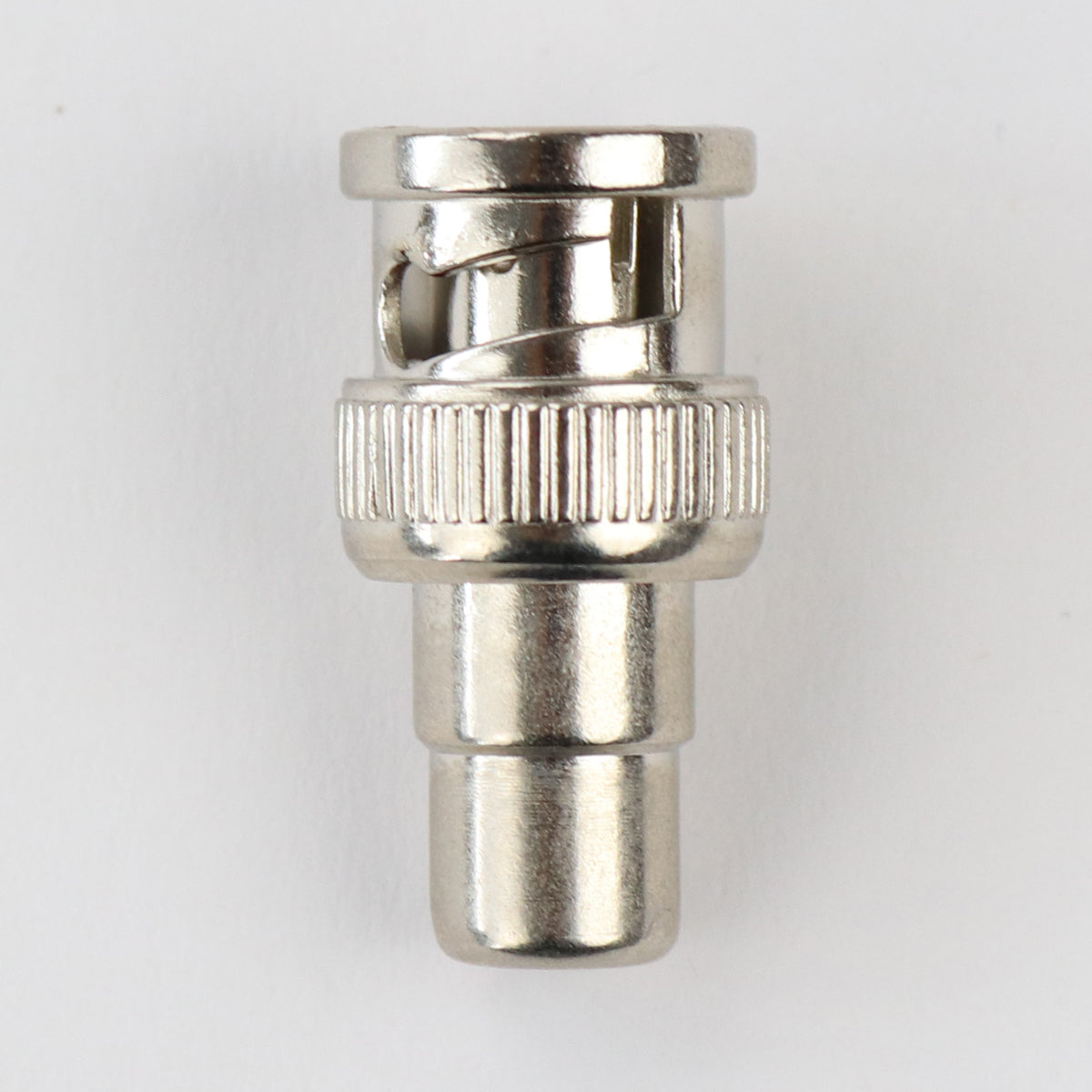

NE922-75 is an inline interseries adapter from a RCA (phono) jack to BNC plug, and allows direct connection between a RCA plug and BNC plug. Nemal 75 Ohm adapters offer a high performance, convenient solution to interconnecting different connector types. They are available in any combination of connector type and gender.

75 Ohm BNC Adapters and Terminations
Part Description: RCA Jack-BNC Plug
Dimensions: 1.28 (32.5mm), 0.56 (14.2mm)

Mechanical

Durability: 500 Cycles Min Center Contact
Center Contact Retention: 6 lbs. Minimum
Coupling Mechanism: 100 lbs. Minimum
Force to Engage/Disengage: Torque 2.5 in-lbs. Max.
Longitudinal force 3.0 lbs. Max.
Interface Dimension: MIL-C-39012 except 75 Ohms

Electrical

Characteristic Impedance: 75 Ohms
Voltage Rating: 500 Volts RMS
Return Loss:
Less than -36 dB to 1 GHz; -25 dB to 2 GHz; -23 dB to 3 GHz; -20 dB to 5 GHz
Contact Resistance: Center Contact .0014 Ohms Outer Contact .002 Ohms
Insulation Resistance: 5000 megohms

Environmental

Thermal Shock: -65°C to +165°C
Moisture Resistance: 0 to 95%: MIL-STD-202 Method 106
Corrosion (Salt Spray): MIL-STD-202 Method 101Test Condition B
Flammability: UL 94-VO Rated(Center Conductor Insulator)
Vibration: MIL-STD-202 Method 204Test Condition B
Solvent Resistance: MIL-STD-202 Method 215

Finishes

Body/Bayonet: Nickel
Center Conductor: 50 millionths inch gold plating over copper plate
