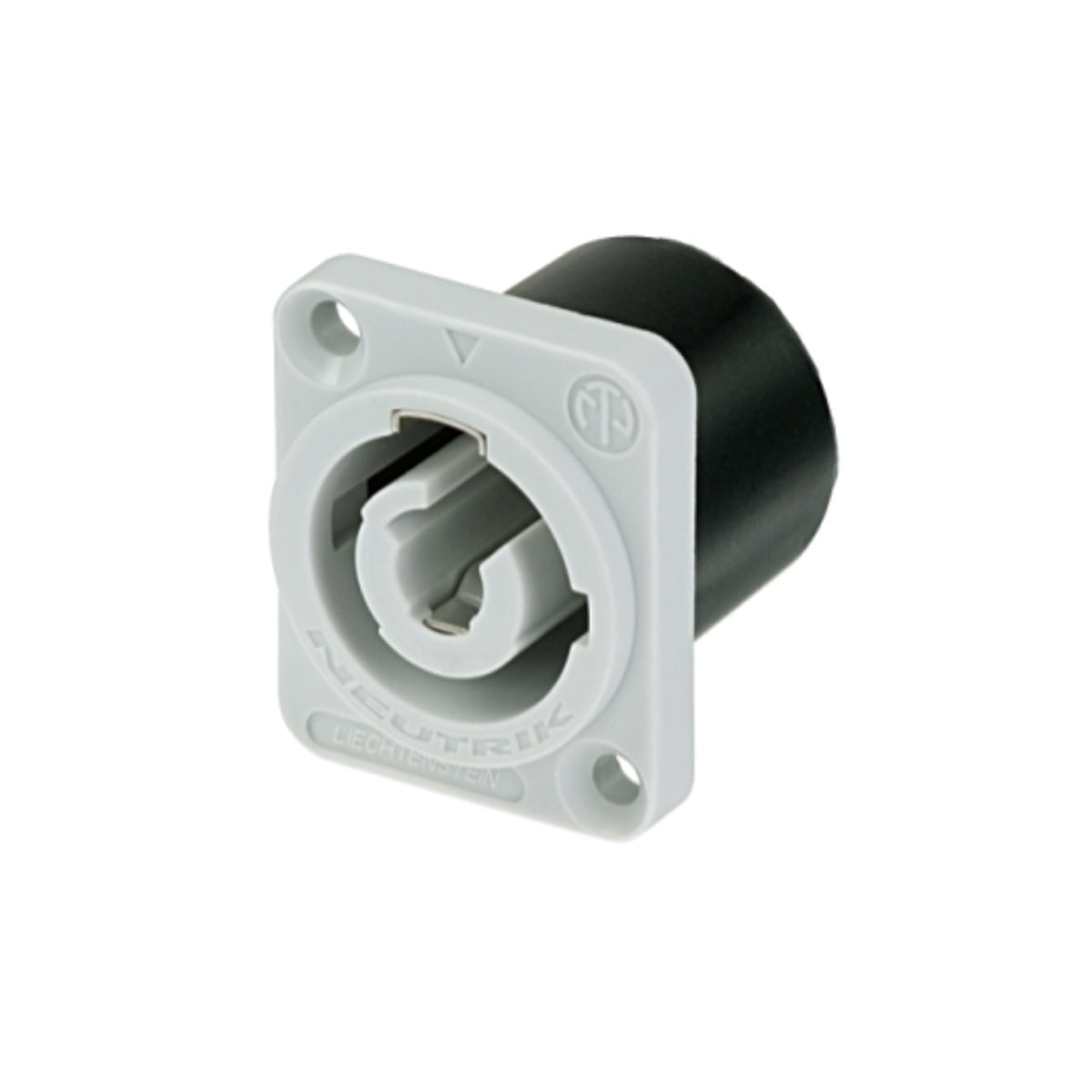

Neutrik powerCON NAC3MPXXB-WOT Power-Out Grey Chassis Connector
Neutrik![Neutrik powerCON NAC3MPXXB-WOT Power-Out Grey Chassis Connector](http://nemal.com/cdn/shop/products/Neutrik-powerCON-NAC3MPB-1-WOT-Power-Out-Grey-Chassis-Connector-NAC3MPB-1-WOT_1280x1280.jpg?v=1627413128)
Chassis connector, power-out, 3/16'' flat tab terminals, grey, without insulation divider. Replaces NAC3MPB-1-WOT.
The powerCON is a locking 3 conductor equipment AC connector with contacts for line, neutral and pre-mating ground contact. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed order to guarantee a safe power connection.
Attention: The powerCON is a connector without breaking capacity, ie the powerCON should not me connected or disconnected under load or live!
Nemal manufactures PowerCON cable assemblies in custom and standard lengths.
Features & Benefits:
- Power-in (blue) and power-out (grey) versions with different keying to avoid the possibility of intermating
- Fast and easy twist lock latching system
- Extremely robust and reliable
- Ergonomic design
- Unique Neutrik chuck type strain relief
- Improved kink protection by two-component bushing
- UL, cUL recognized components
- VDE certified
- SEV approved
- Branded with unique hologram - guarantees genuine and authentic Neutrik product
Electrical
- Gender female
- Contact resistance ≤ 3 mΩ
- Dielectric strength 4 kVdc / 2.8 kVac
- Insulation resistance > 0.1 GΩ (after damp heat test IEC 68-2-30)
- Number of electronical contacts 2 + PE
- Rated current per contact 20 A rms
- Rated voltage 250 V ac
Mechanical
- Cable O.D. 6 - 15 mm (1)
- Lifetime > 1000 mating cycles
- Wire size 2,5 mm²
- Wire size 14 AWG
- Locking device Quick Lock
Material
- Contact plating 4 μm Ag
- Contacts Bronze (CuSn6)
- Insert Polyamide (PA 6 30 % GR)
- Locking element Zinc diecast (ZnAl4Cu1)
- Shell Polyamide (PA 6 30 % GR)
- Strain relief Polyacetal (POM)
Environmental
- Temperature range -30 °C to +80 °C
Product specific
- Coding A-type for power inlet (color coding blue)
