Professional ruggedized 4K HDMI + USB fiber converter system

HUXT² HDMI 4K + USB
Video Extender

HDMI 2.0 | 4K 60Hz | 18Gbps | HDR | 4:4:4 | HDCP 2.2 | Dual USB

Specifications

Signal type

HDMI 2.0

USB Signal

USB 2.0
(dual lane on RX)

Maximum Resolution

4096x2160p

Color Sampling

4:4:4

Maximum Distance

10Km (SingleMode)

Max. color depth

16bit*

Content Encryption

HDCP 2.2

Max. Frame Rate

60Hz

HDR Support

Yes

Video Bandwidth

18Gbps

Fiber Mode

SingleMode

Fiber Connection

Neutrik opticalCON DUO (LC compatible) OR opticalCON QUAD OR FiberFox 2CH

Video Connection

Neutrik HDMI A-Type female

Power / Data Connection

Neutrik powerCON TRUE1 TOP Female / Neutrik USB B-Type Female

Rated Voltage

100-240V (powerCON TRUE1 TOP)

5V (USB)

Weight

1285g (TX + RX)

Dimensions

200mm (L) x 150mm (W) x 61mm (H)

Operating Temperature

0°C - 40°C

Price per set-includes both TX and RX units

• Supports HDMI 2.0
• Maximum resolution of 4K UHD @60Hz (3840*2160p / 4096*2160p)
• Full 18Gbps bandwidth (HDMI 2.0)
• Full range 4:4:4 color space (RGB and YUV)
• HDR Support
• Up to 10 Km range (SingleMode)
• Supports both HDCP 2.2 and HDCP 1.4 content protection
• Rugged, lightweight and compact aluminum housing
• Multi color LED for status indication
• Anti-slip gaskets
• USB port for firmware update
• Pair with Neutrik’s opticalCON DUO (standard LC Duplex fibers compatible) or optional QUAD or FiberFOX

Built for the field

The XT² features a powder-coated aluminum housing that enhances durability by resisting wear, corrosion, and environmental damage. Its rugged extruded aluminum enclosure with reinforced rubber corners ensures reliable protection against impacts, drops, and rough handling. With compact dimensions (200mm x 150mm x 61mm), it’s easy to transport and store.

Price per set includes TX and RX Units

Does not include optional flight case or cable

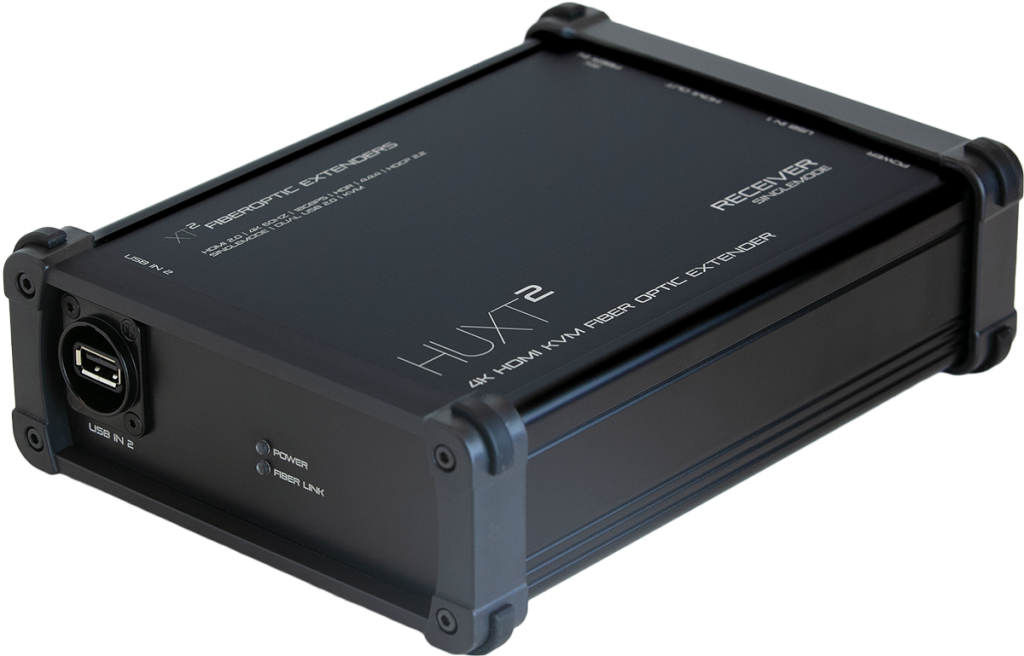

HUXT² Fiber Converter4K HDMI + USB
