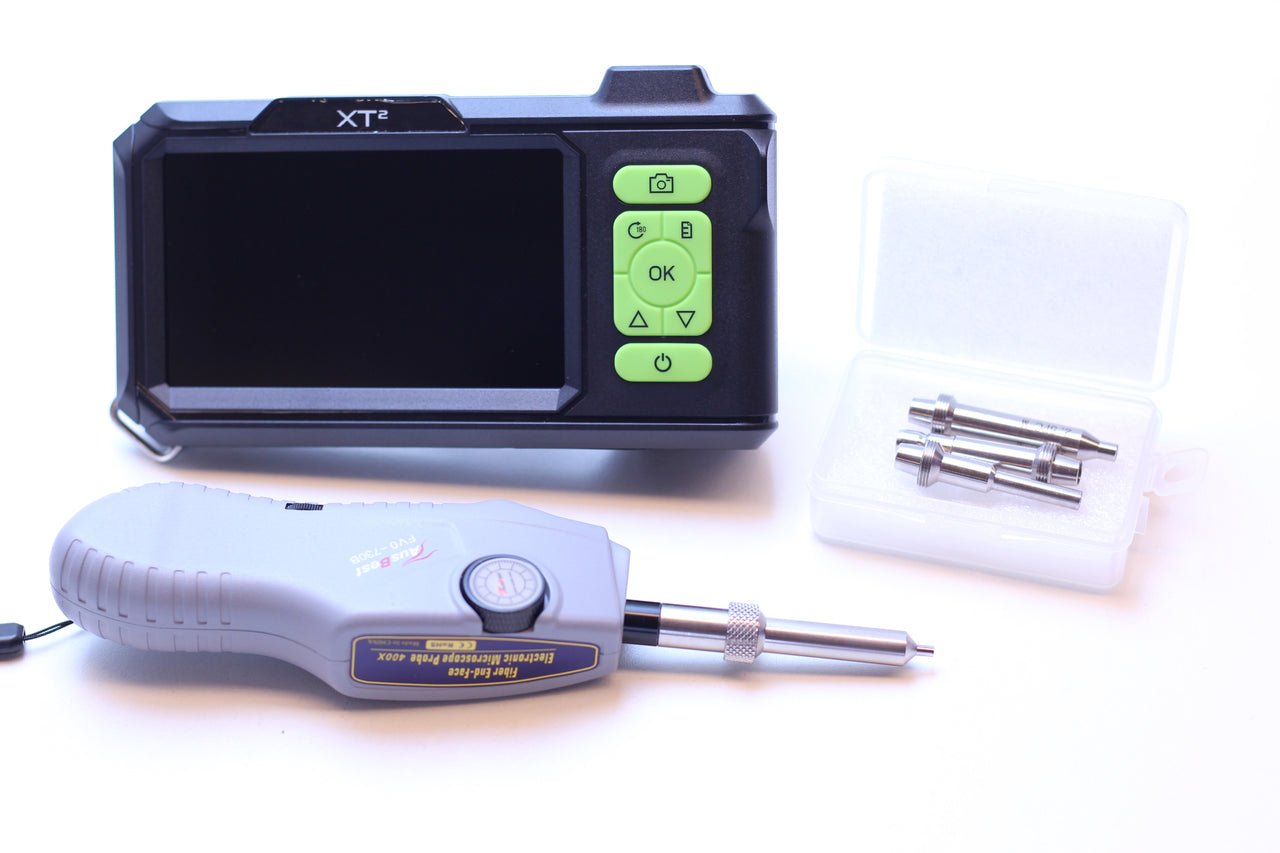

Fiber Optic Inspection Kit (camera) LEMO F2, opticalCON DUO & QUAD compatible
Nemal Electronics
Description
This Fiber Optic Inspection Kit combines a high-magnification electronic microscope probe with a portable display, allowing technicians to quickly inspect the end-face condition of fiber optic connectors. The system makes it easy to identify contamination, scratches or damage before installation or troubleshooting, helping ensure reliable optical connections.
With 400× magnification and 1 µm resolution, the probe clearly displays the fiber end-face and allows users to capture images for documentation or quality control. A simple focus wheel enables precise adjustment during inspection, while the compact probe design allows access to connectors even in dense patch panels.
The kit supports inspection of a wide range of connectors, including simplex connectors such as LC as well as ruggedized connectors like LEMO 3K (F2), opticalCON DUO and QUAD, both chassis and a cable connector with the use of FOCD-STC, FOCD-STD and FOCD-STQ and is suitable for both PC and APC polished end-faces. Various interchangeable tips allow inspection in difficult-to-reach areas or inside installed patch panels.
Key features
- 400× magnification microscope probe for detailed fibre end-face inspection
- 1 µm optical resolution for detecting scratches, contamination or damage
- Portable display endoscope for real-time viewing without a computer
- Image capture capability for documentation and quality control
- Simple focus wheel for precise manual focusing
- Wide connector compatibility including LC, opticalCON DUO and other common fiber connectors
- Interchangeable inspection tips: 2.0mm, 2.5mm and 1.25mm male and female for different connector types and hard-to-reach locations
- Supports PC and APC polished connectors
- Compact and lightweight probe for field use
- Optional USB connection to display images on a PC or laptop
