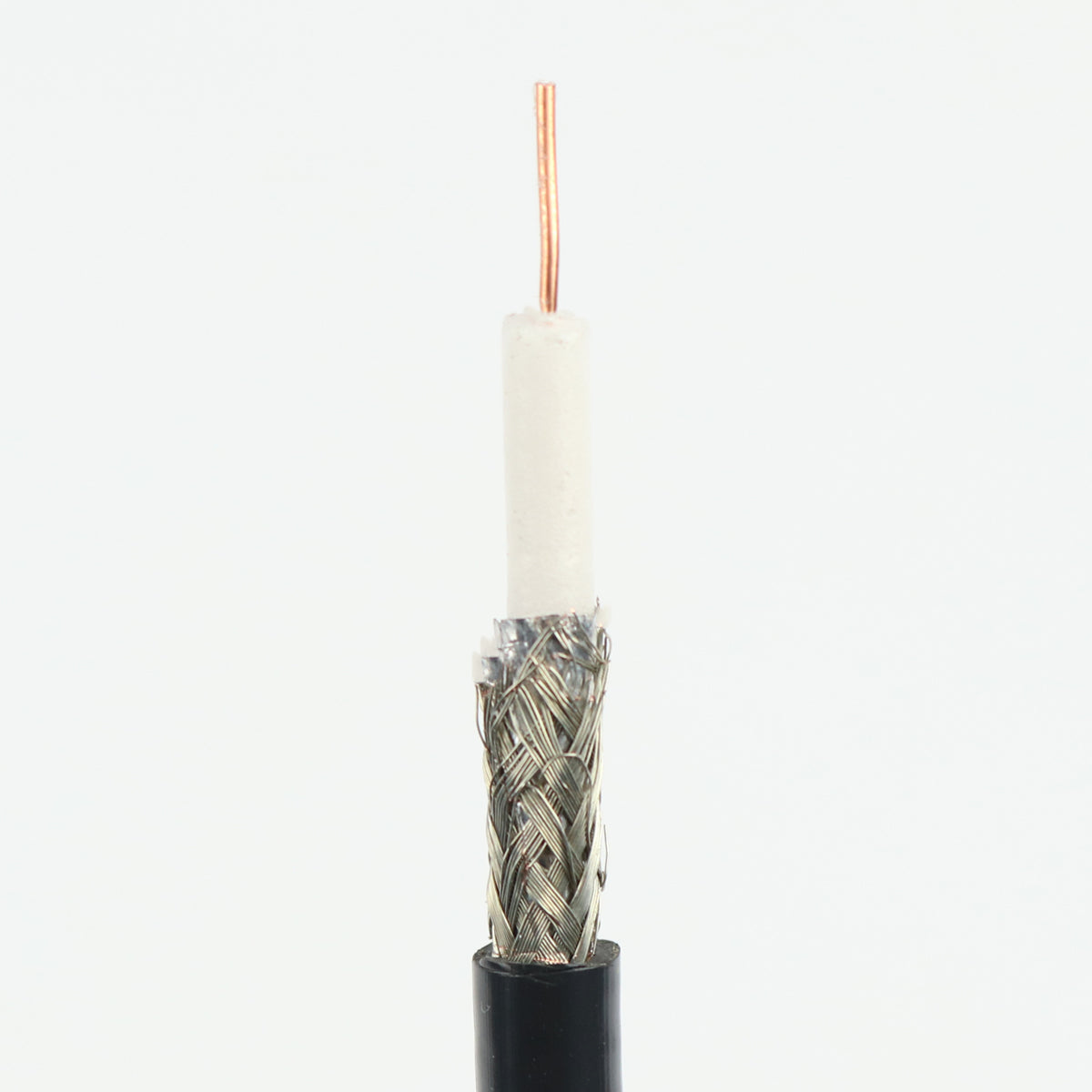

Video Coaxial Cable HD/SDI RG59 Type Solid 20 Awg PVC Jacket
Nemal Electronics1570 is a RG59HD, 20awg coaxial cable suitable for 3G/HD-SDI over medium distances (see Nemal Maximum Recommended Distance Chart). It is ideal for use in racks, mobile installations, and other applications not requiring the larger RG6/RG7 cables. 1570 is available in 10 colors, either in bulk or terminated to customer specifications. Recommended connectors are Nemal NE8094H (BNC) and NE3020 (Mini-Din)
Physical Characteristics:
Part Number: 1570
Product Description: Coaxial cable, 75 ohm, extended distance HD/SDI Center
Conductor: 20 awg solid bare copper .032” (.81mm)
Dielectric: Gas injected FHDPE .145” (3.7mm)
Shielding: 100% Aluminum/mylar tape and 95% tinned copper braid Jacket
Material: TPR, 80C Outer Diameter: .242” nom. (6.2mm)
Weight: 35 lbs/1000 ft (52.2kg/km)
Electrical Characteristics:
Impedance: 75 +/-2 ohms nom.
Capacitance: 16.3 pf/ft (53.5pf/mtr)
Velocity: 83%
Return Loss: 23 db min (5-1600 MHZ) 21 db min (1000-4500 MHZ)
DCR: Center conductor: 10.0 ohms/1000ft (32.8 ohms/km) Braid 3.8 ohms/1000ft (12.5 ohms/km)
Time Delay: 1.24ns/ft (4.07ns/meter)
*Maximum recommended distance for HD-SDI (SMPTE 292M 1.5Gb/s) 308ft (94 mtr)
*Maximum recommended distance for HD-1080p (SMPTE 424M 3.0Gb/s) 215ft (66 mtr)
*Distance will vary depending on equipment, installation, and other factors.
Nominal Attenuation:
Notes: 100% Sweep tested 5 MHZ-4.5 GHZ Rohs compliant materials |
