SMPTE Video Inspection Tool For F2 (LEMO), ST, LC, and SC Fiber Contacts

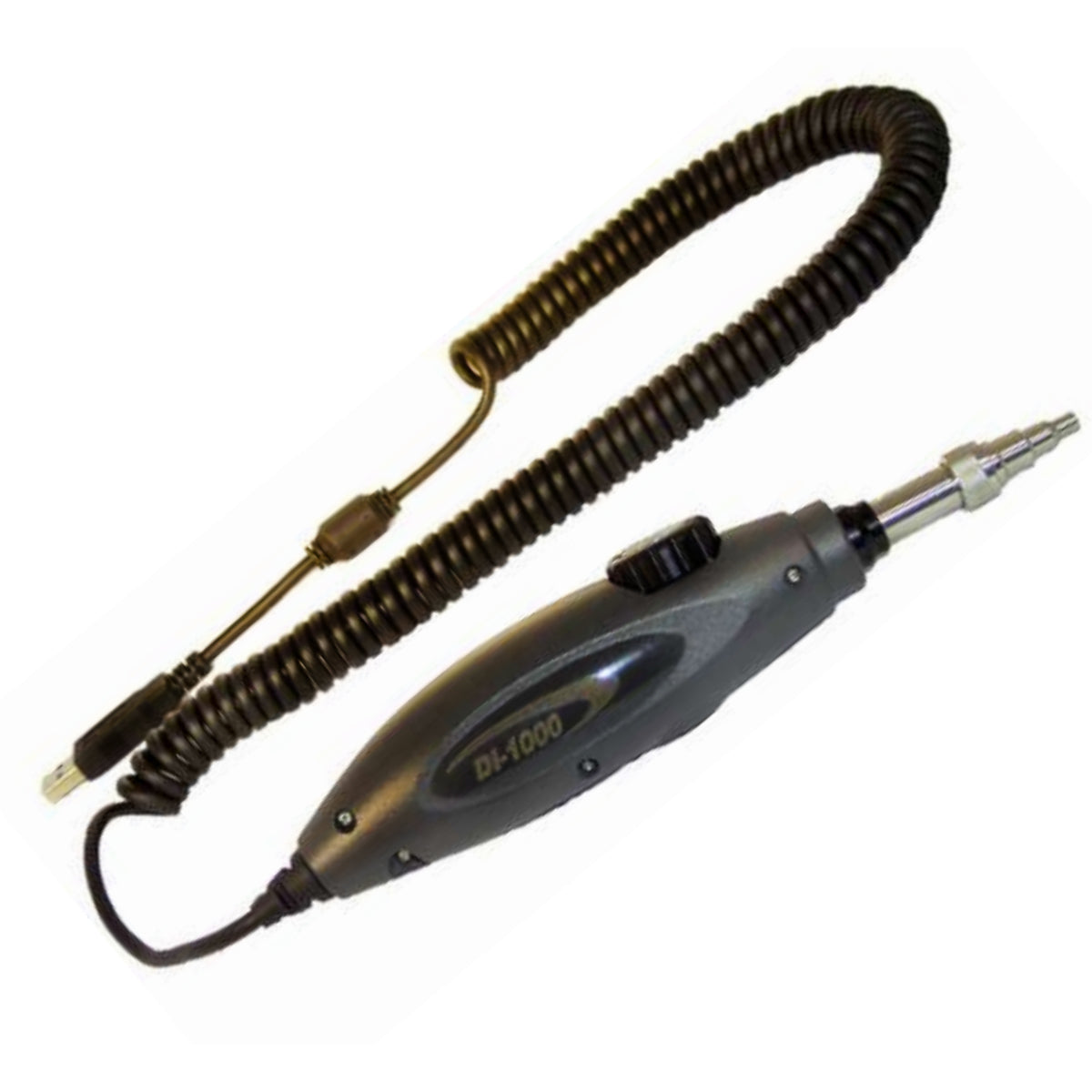

This kit includes the ergonomically designed Lightel DI-1000 all digital video microscope probe and the F-2 tip for inspecting LEMO SMPTE contacts. It connects directly to your PC through the computer's USB2.0 port. Featuring easy single finger focusing, a built-in image freeze/capture button, and detectable resolution to 0.5µm, the DI-1000 package includes our free ConnectorViewTM (standard) software, providing digital zoom, image display, image capture, auto-calibration and basic analysis tools.The DI-1000 uses Series 2 inspection tips, and can also use all our CI-1000 tips with an optional adapter. Our optional ConnectorView Plus analytical software adds Pass/Fail analysis and detailed reporting capabilities to the DI-1000.

Specifications

Field of View: ~425μm x 320μm

Resolution: 0.5μm detectable

Operating Temperature: 0ºC to 50ºC

Storage Temperature: -20ºC to 70ºC

Focus: Manual adjustment, 2mm max travel

Dimensions: 35mm diameter x 175mm length (without tip)

Light Source Blue LED

Power Supply USB port of PC
