Microphone cable braid shield 2 conductor 20 awg flex jacket
Microphone cable braid shield 2 conductor 20 awg flex jacket Microphone cable braid shield 2 conductor 20 awg flex jacket Microphone cable braid shield 2 conductor 20 awg flex jacket
MC220R
$67.66

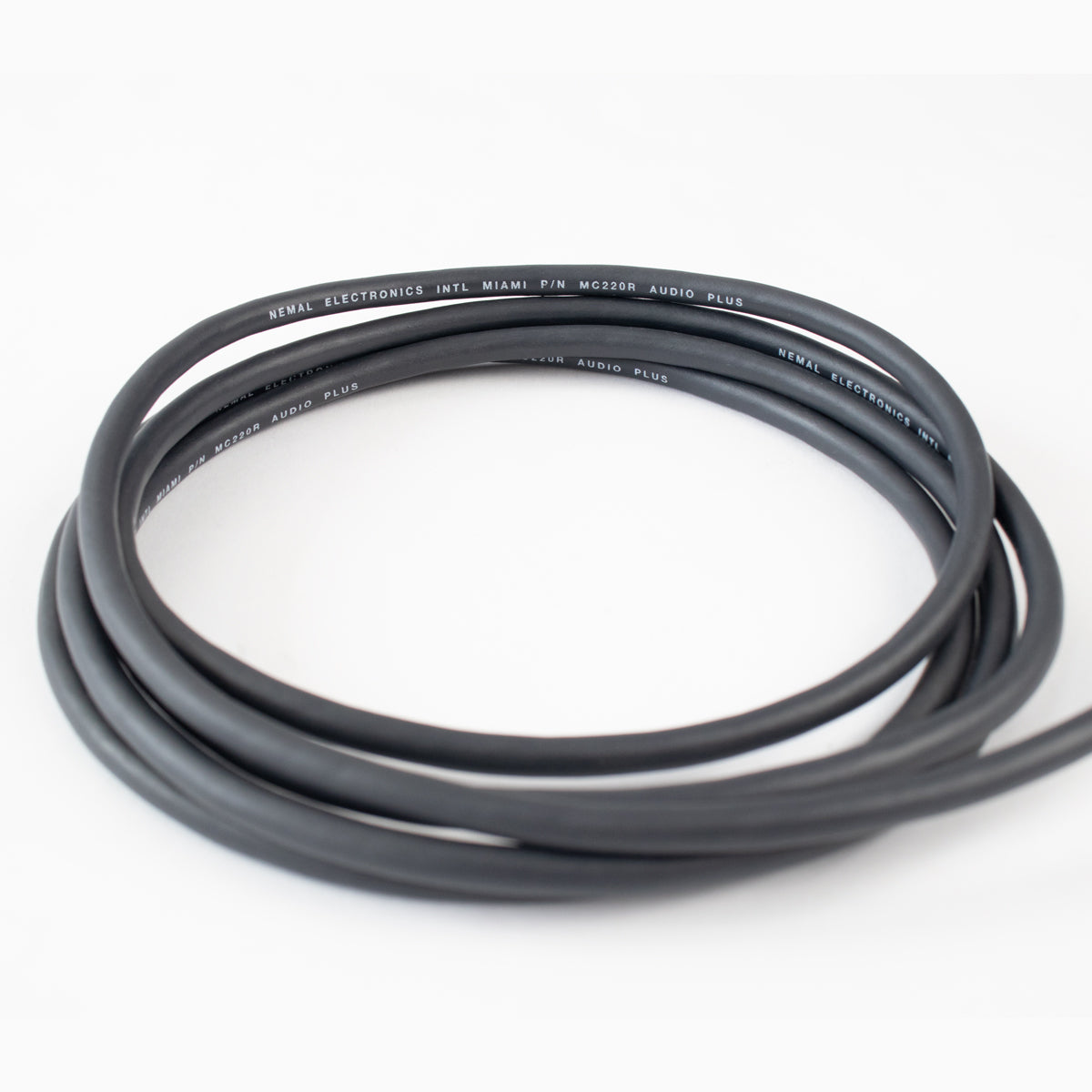

MC220R 2-Conductor 20awg flexible heavy duty microphone cable is the ideal choice for rugged environments. Its thick wall TPR jacket and tinned copper braid add extra strength and durability. MC220R is available in 10 colors, in standard or custom lengths from 1-1000 ft, or terminated in any length with Neutrik XLR connectors.

Specifications:

  • Two conductor, Low-Impedance Microphone/Audio Cable with high conductivity copper and flexible TPR jacket.
  • Product description: 2-Conductor 20 awg, shielded microphone cable
  • Conductors: 20 awg (19/32 tinned copper), polyethylene insulation
  • Jacket: Black TPR, 80C

Conductor
Size and Type

Stranding

Insulation In (mm)

Conductor
Diameter
in (mm)

Number Of
Conductors

Shielding
Type

Nom. OD in (mm)

Outer Jkt in (mm)

Weight

(1000ft)

lb (kg)

20 awg Tinned copper



19/32



.023”(.50) PE

.070” (1.78)

2

85% tinned copper braid



.262”

(6.7)



.035” (.89) TPE



46 (20.9)
